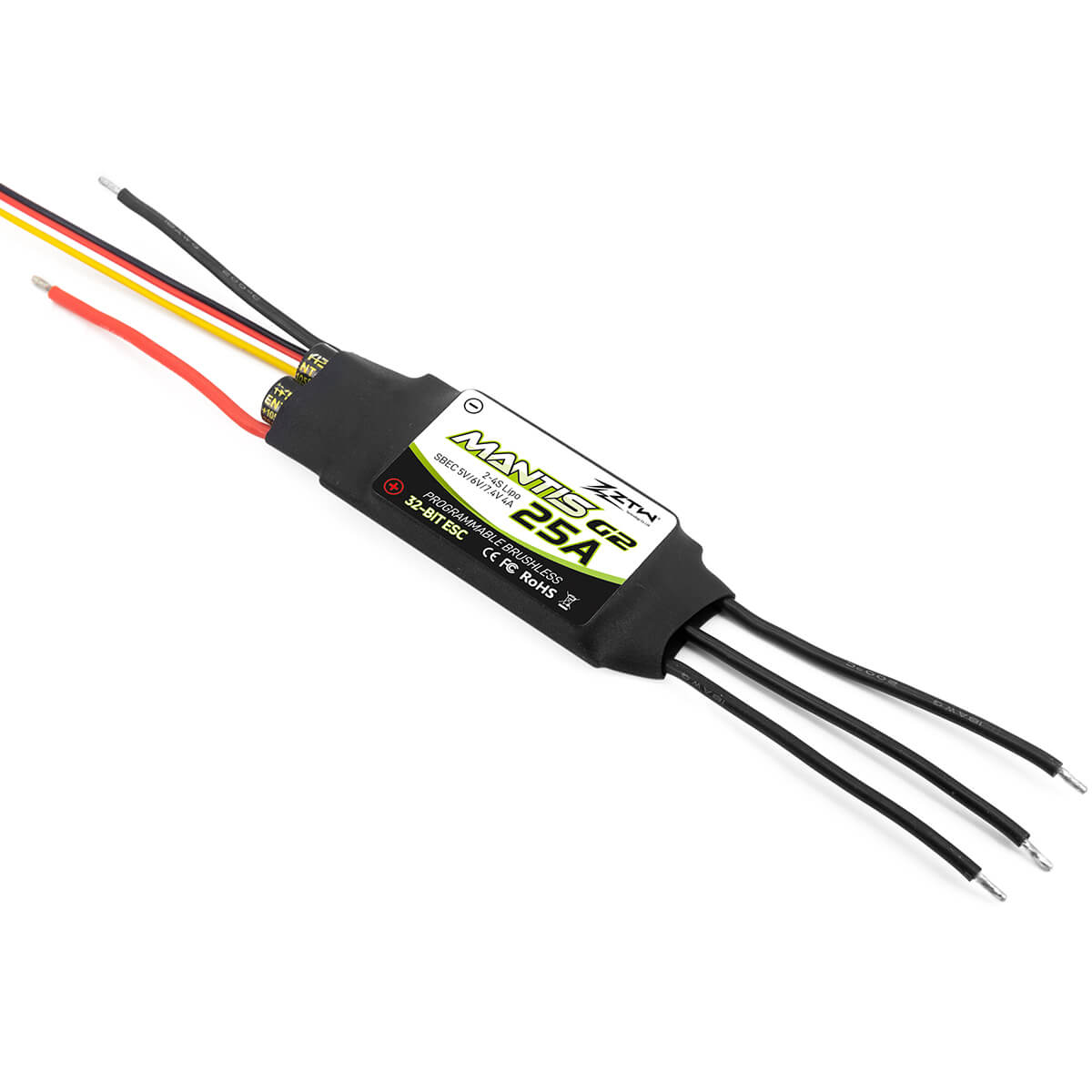

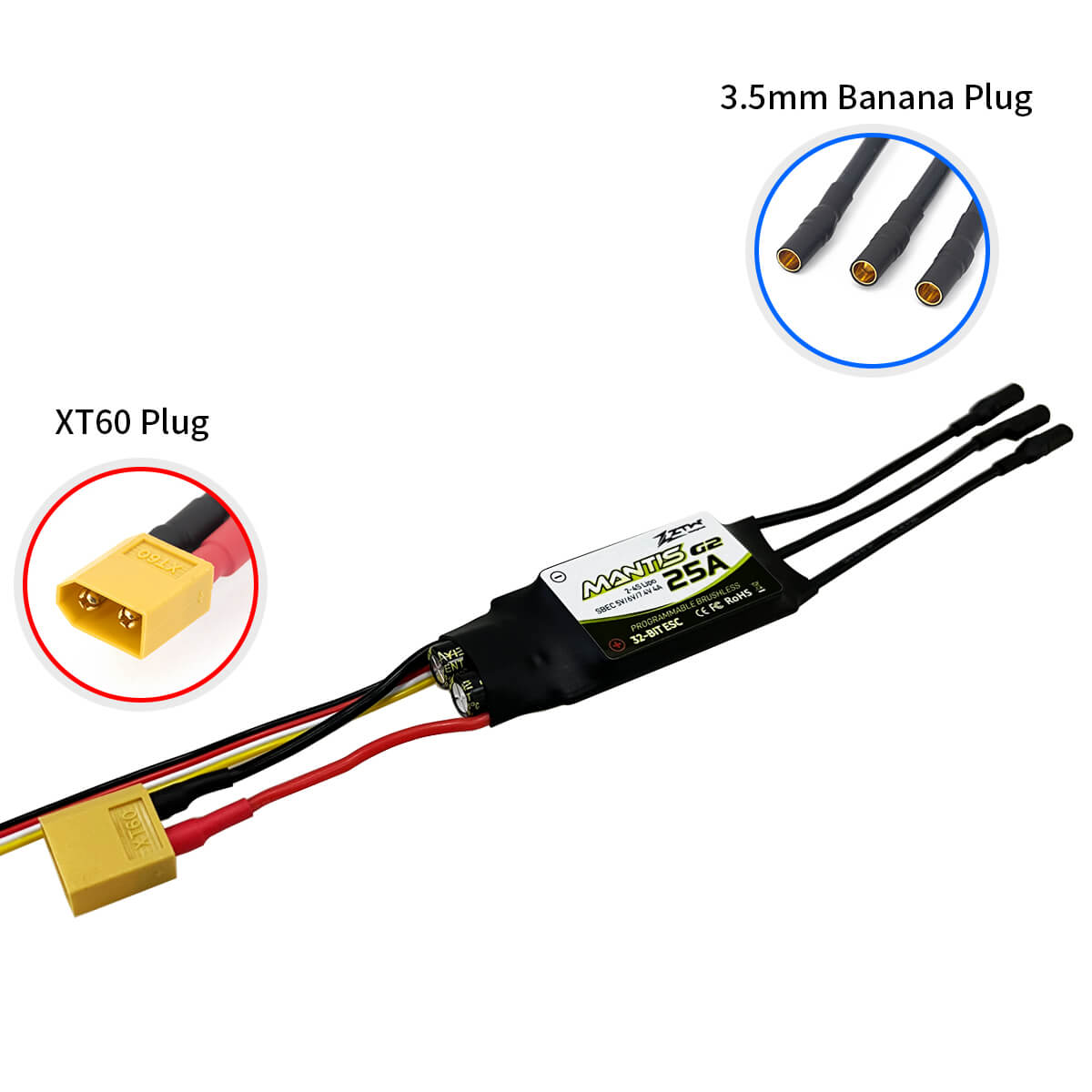

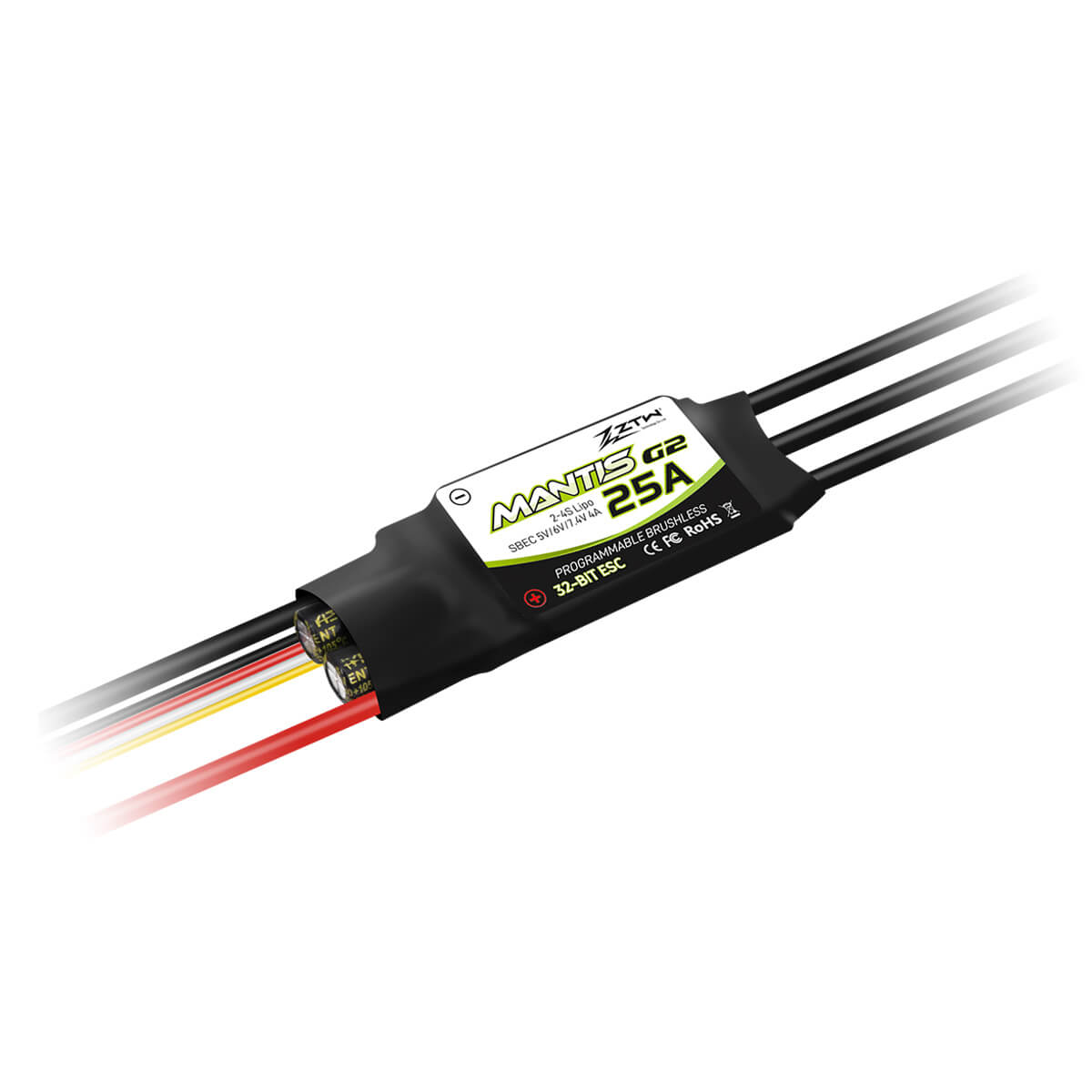

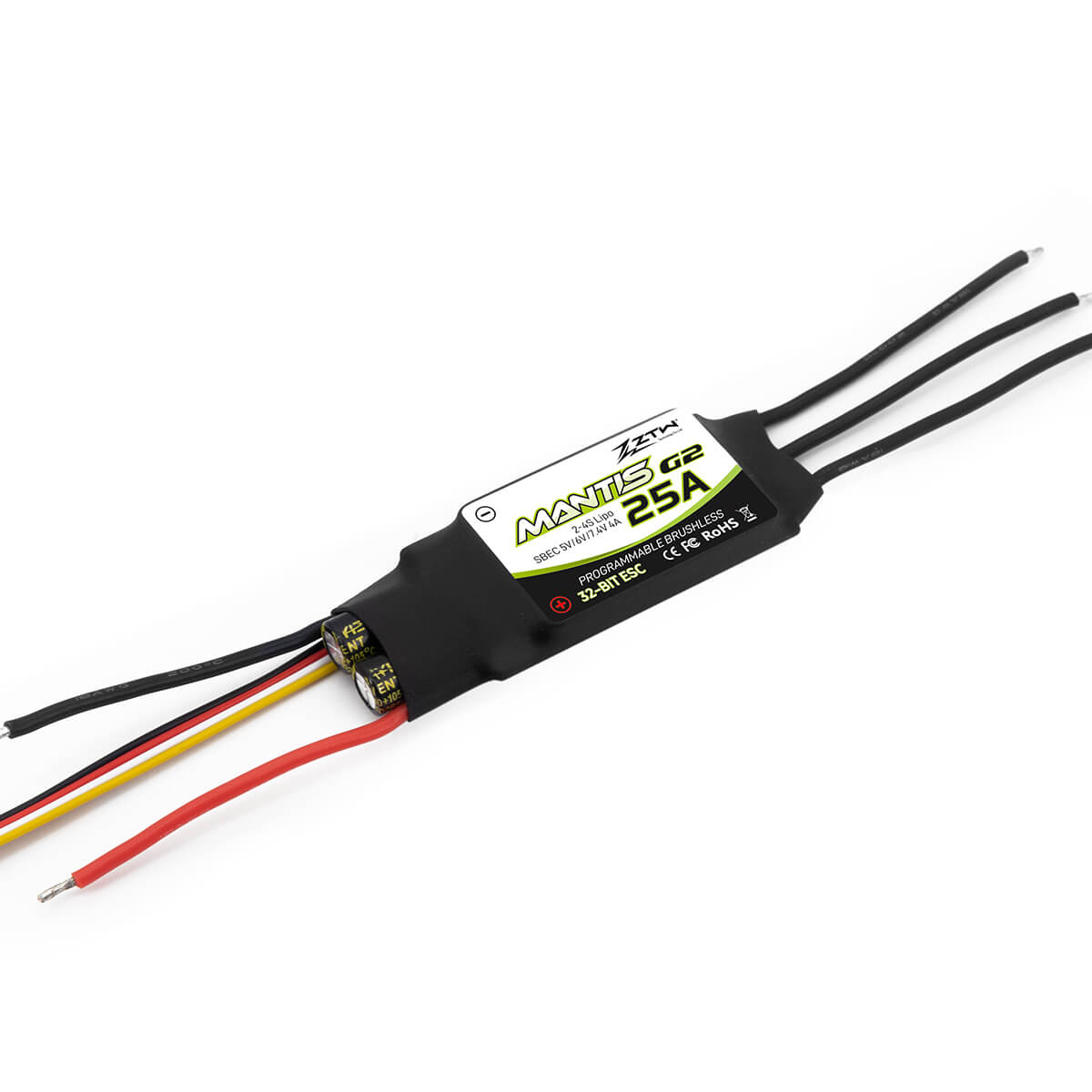

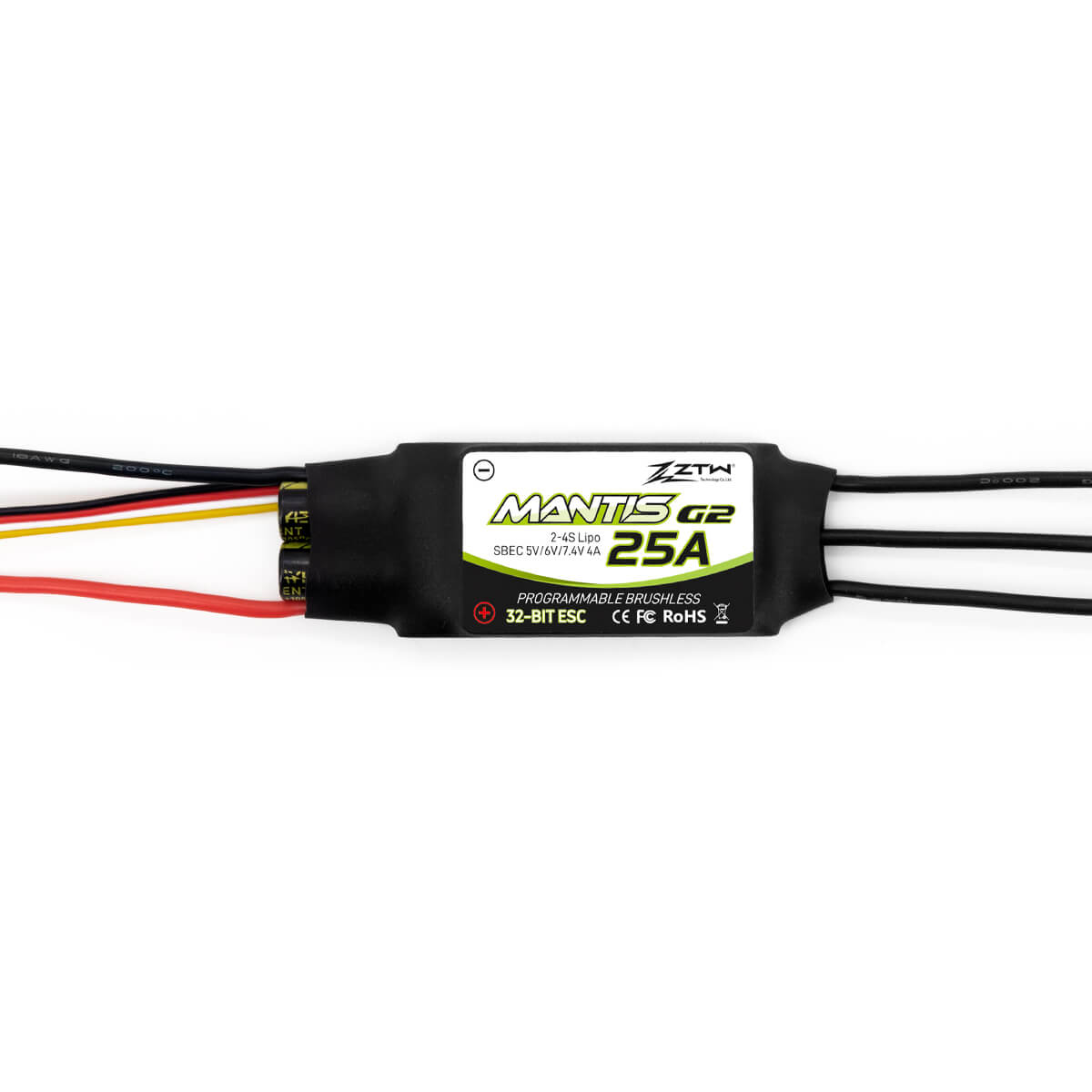

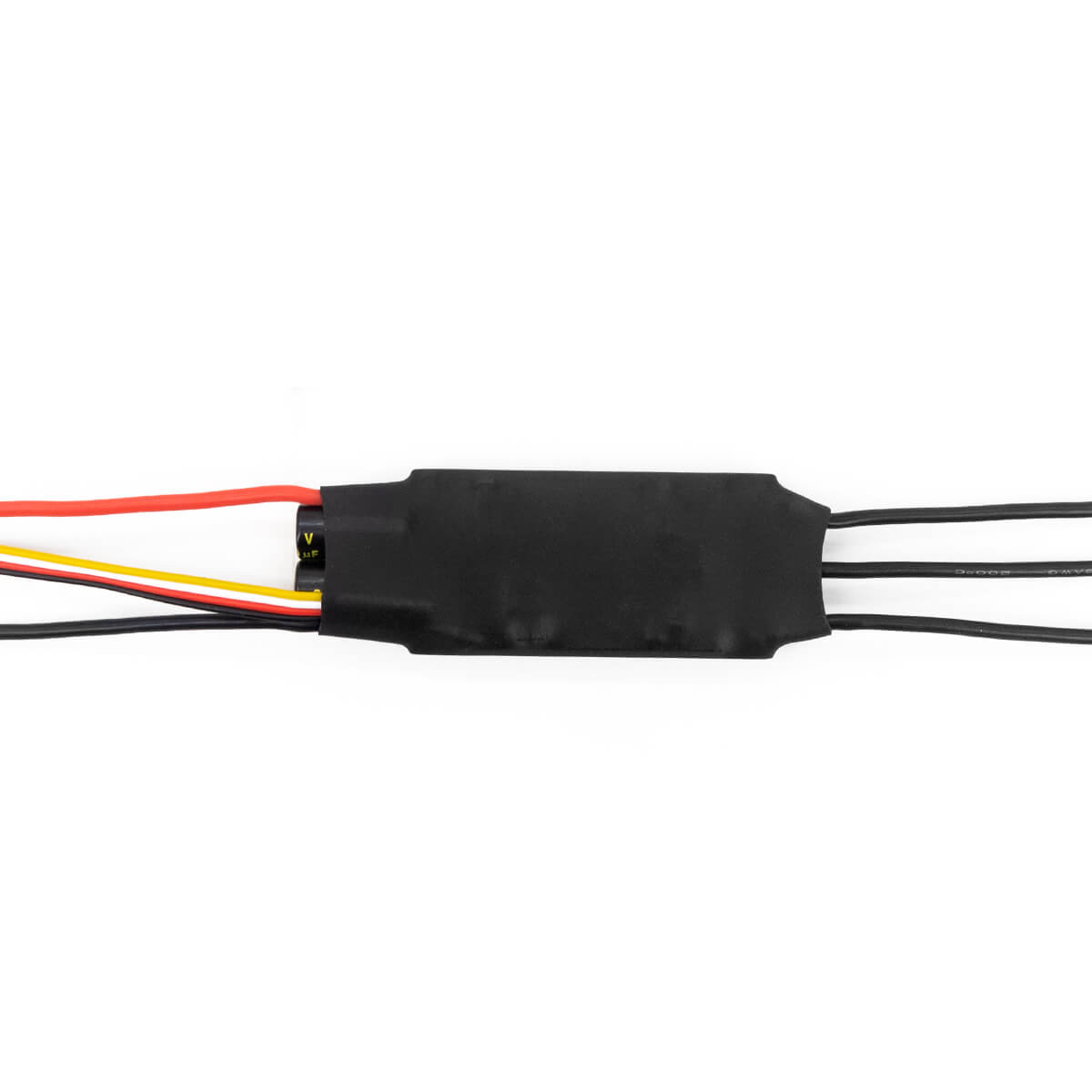

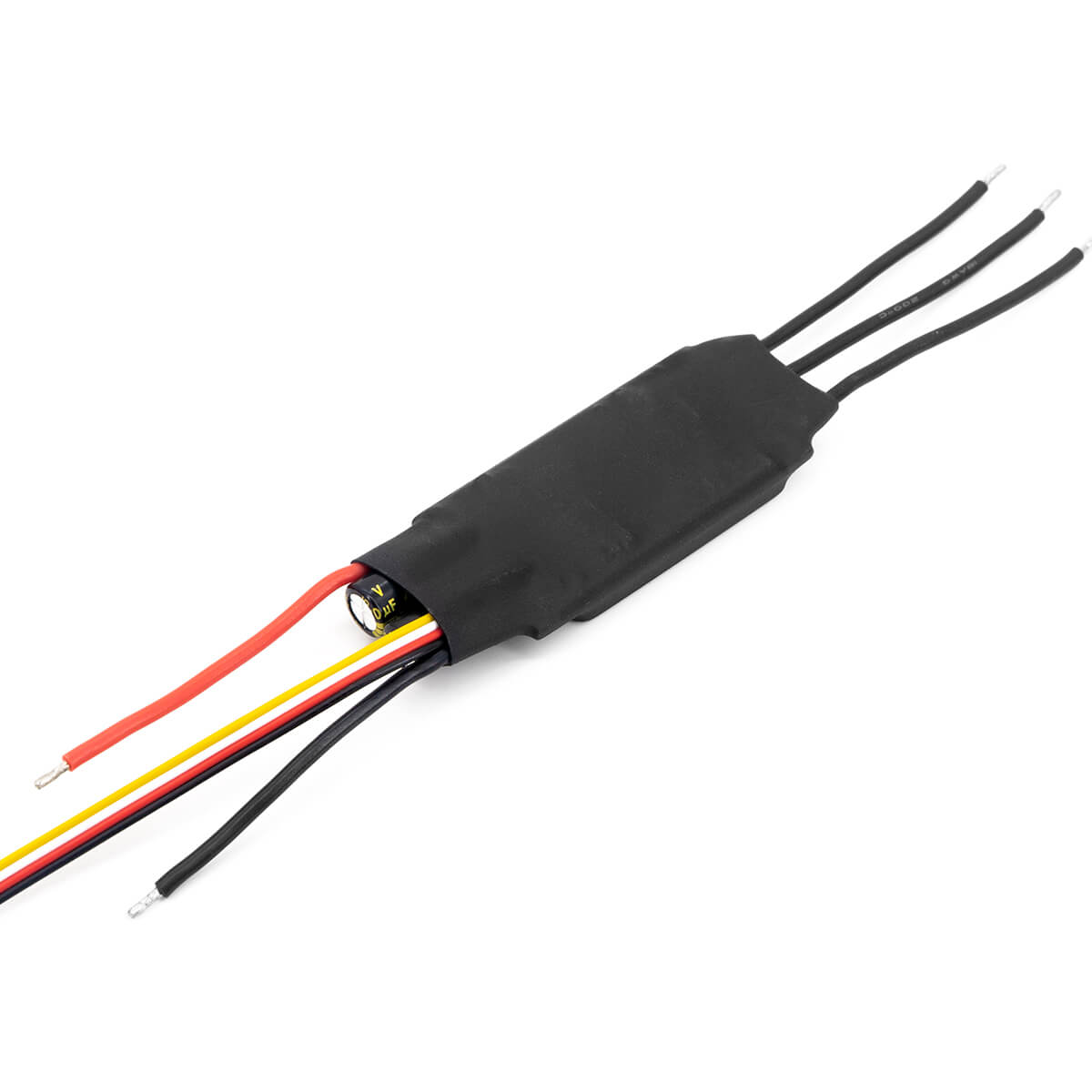

ZTW Mantis G2 25A ESC 2-4S SBEC For RC Airplane Fixed-wing
We(ZTW) have released a new 32-bit Mantis G2 25A ESC 2-4S SBEC for RC airplane fixed-wing.
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Higher driving efficiency and more energy-saving.
5. Two modes: normal and soft acceleration. It is compatible with normal fixed-wing and EDF jet airplanes, please ensure to select the “Soft” acceleration when using EDF jet airplanes.
6. Multiple protections: start-up, over-heat, low-voltage cutoff, over-current and signal loss.
7. Support high RPM motors, and compatible with most motors in the market.
8. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card G2 needed).
9. The ESC has data returning feature, it can send data in real-time: current, voltage, temperature, RPM, throttle and ESC status. And you can check the data via ZTW LCD program card G2 or Phone APP in real-time.
| Model | Mantis G2 25A 2-4S SBEC |
| Continuous Current(A) | 25 Amps |
| Burst Current(A) | 35 Amps |
| Voltage | 2-4S LiPo/LiHV |
| Power Wire | 18 Gauge 70mm-Red/70mm-Black |
| Motor Wire | 18 Gauge 70mm-Black |
| BEC Output | 5V/6V/7.4V Adjustable 4A |
| Size(not including wires) | 68*26*10mm(L*W*H) |
| Weight | 36g |
| Firmware Upgrade | Not Supported |
