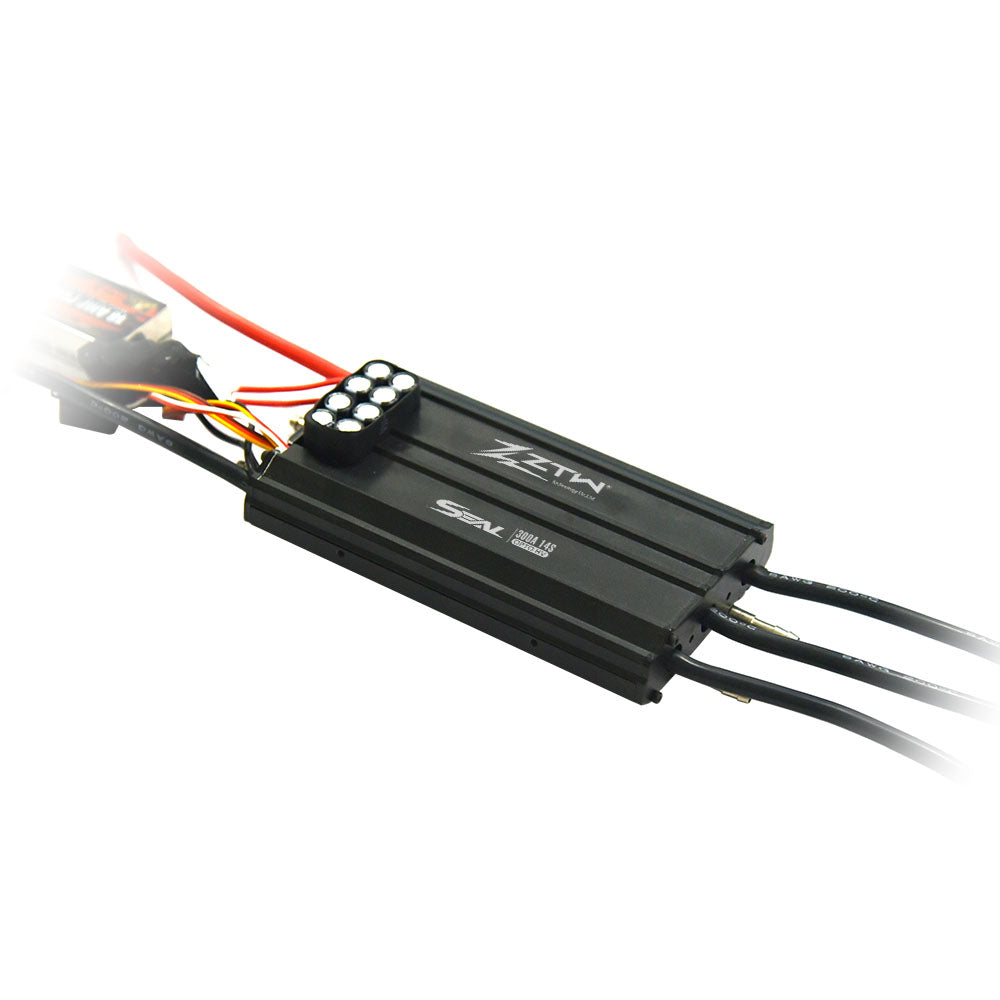

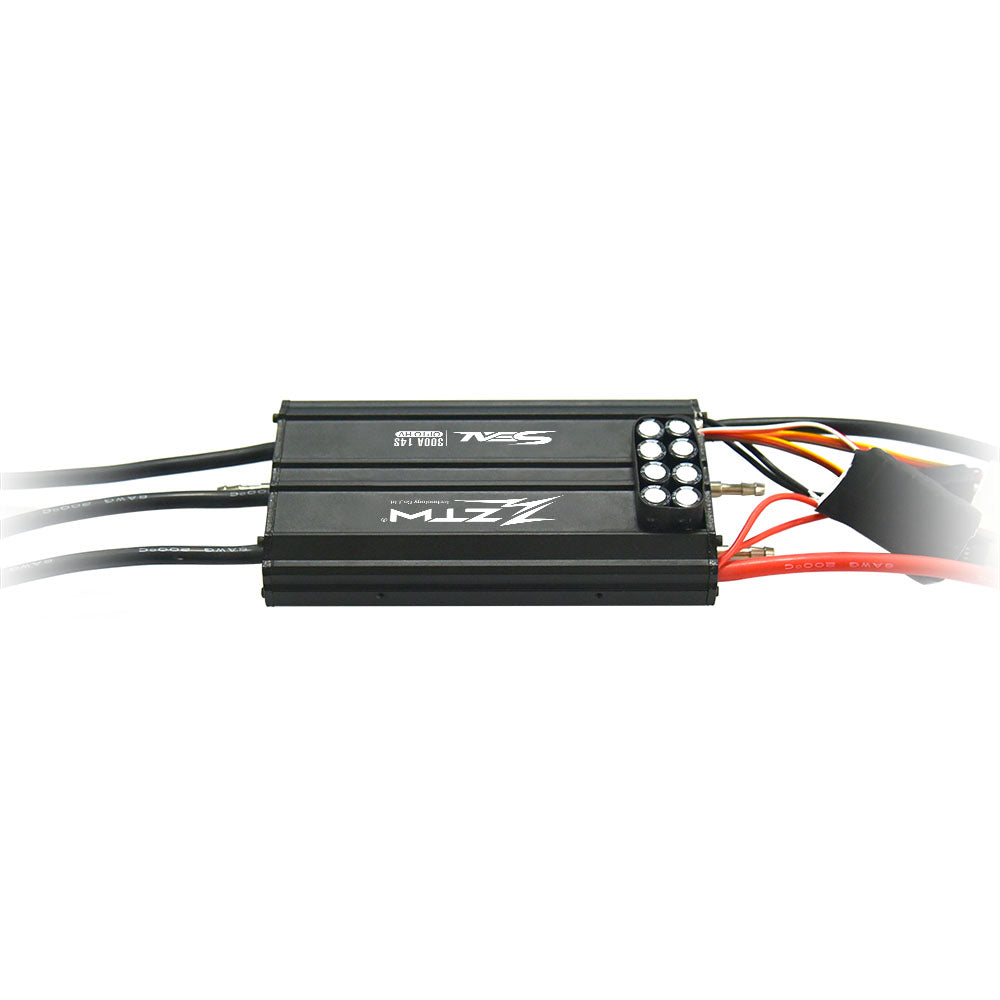

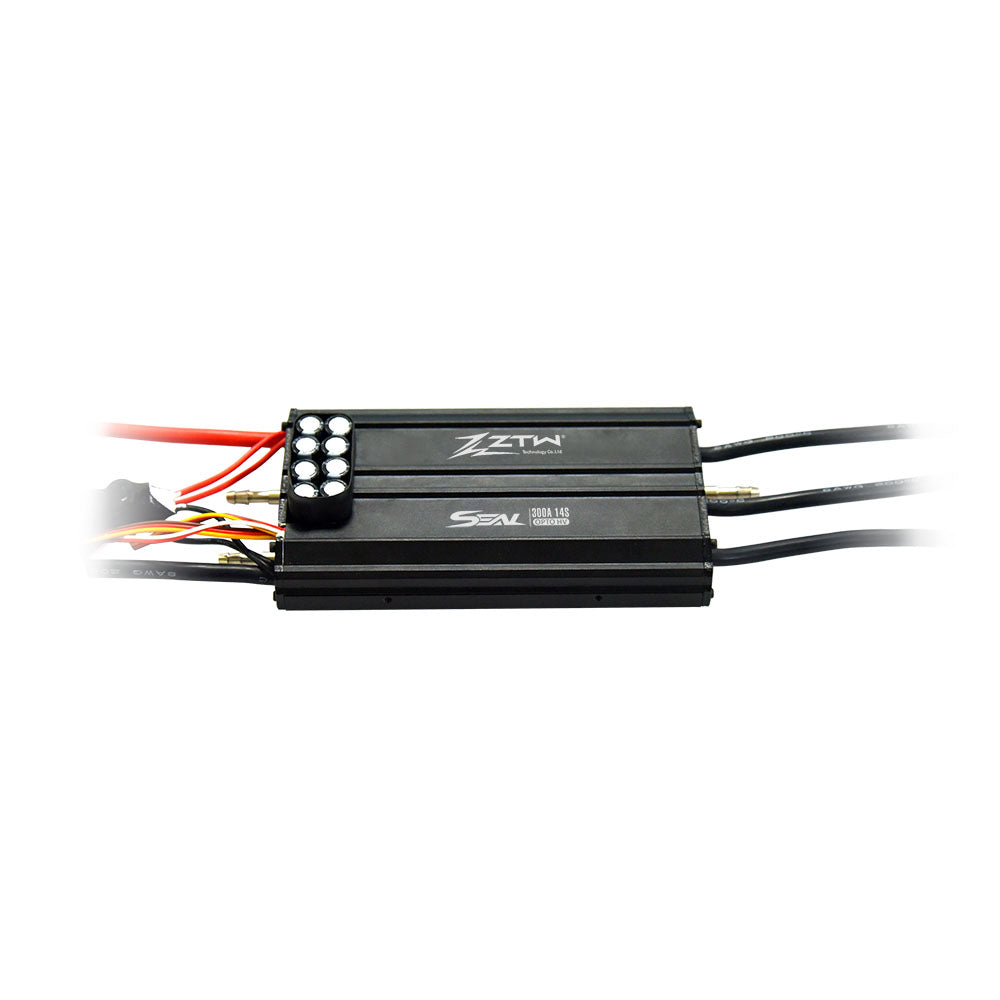

ZTW Seal 300A ESC HV 6-14S For RC Boat
The Seal Series is designed specifically for RC Boat applications, featuring a waterproof design. They are constructed using aluminum, adding an attractive look and ensuring enhanced durability compared to their competition. The 300A ESC includes two water cooling pipes as well as customized heat sinks. However, the 300A ESC does not offer a built-in BEC, requiring an additional battery pack to operate the servo. To protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
Key Features:
1. Aluminum case and Water cooling, Double heat sinking.
2. Tailor made cables , specially for the high current and high voltage.
3. High current , High voltage, Continuous working, controller of the FAST & FURIOUS.
4. Accurate air duct designing, Optional cooling fan , It’s easy to be realized the high efficiency .
5. Full waterproof structure,cool shape , high safe experience , what you see is definitely what it is.
6. "Seven" installing holes, Optional“L”shape mounting seat,helping fix your controller individually (for 300A only).
7. Programmable two way mode.
8. over-heat protection, low-voltage protection and lost-signal protection.
9. Super smooth and accurate throttle linearity.
10. Support and match with most of the motors, including high RPM motors.
11. Utilizes new smaller MOSFET technology to minimize weight.
| Model | Seal 300A HV 6-14S |
| Continuous Current(A) | 300 Amps |
| Burst Current(A) | 1800 Amps |
| Voltage | 6-14S Lipo (18-42 NiMH) |
| Power Wire | 8 Gauge160mm-Red/160mm-Black |
| Motor Wire | 8 Gauge 160mm-Black |
| BEC Output | None, requires RX pack or BEC Eliminator Circuit |
| Size(not including wires) | 146*84*28.6mm(L*W*H) |
| Weight | 640g |
| Programming | LCD Program Card |
