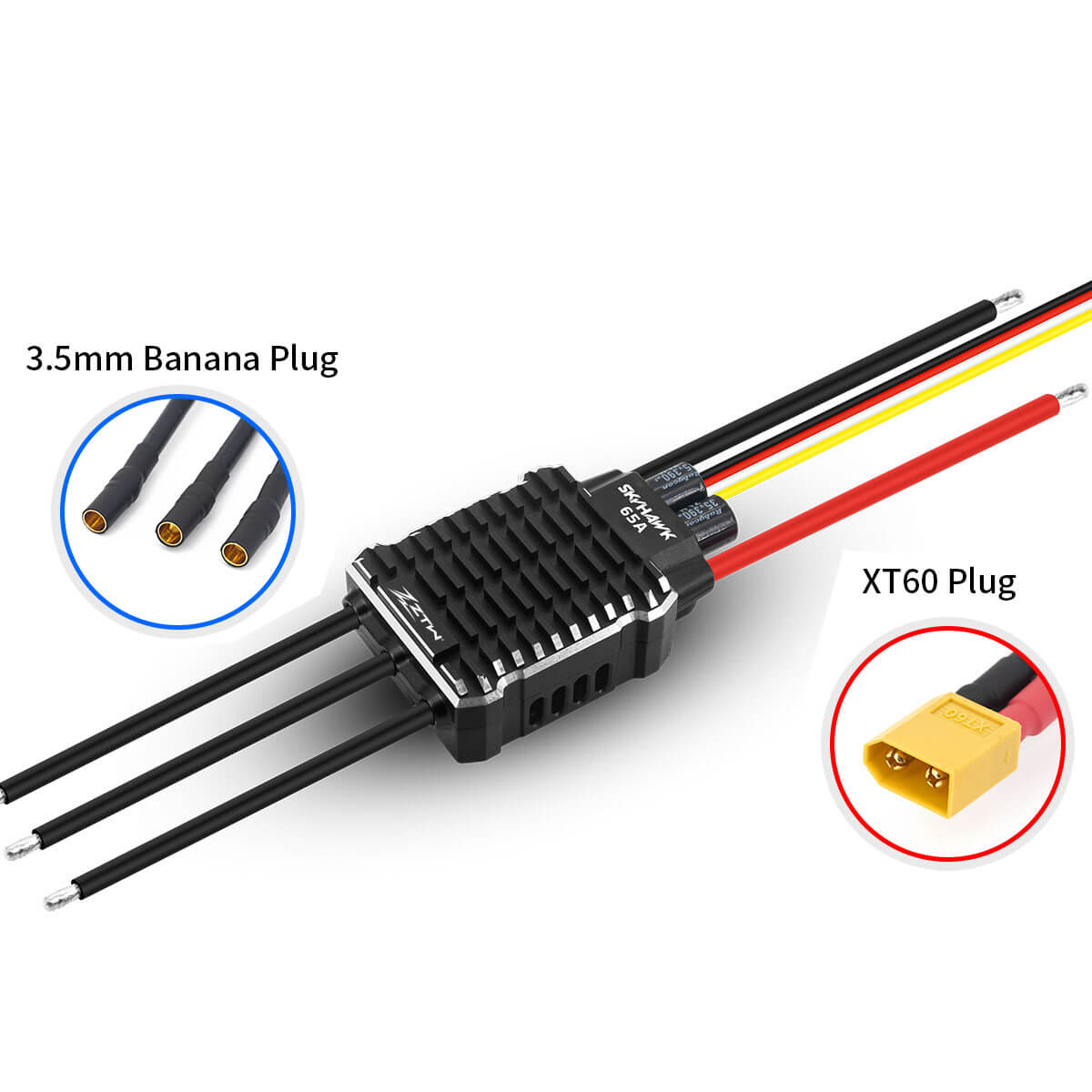

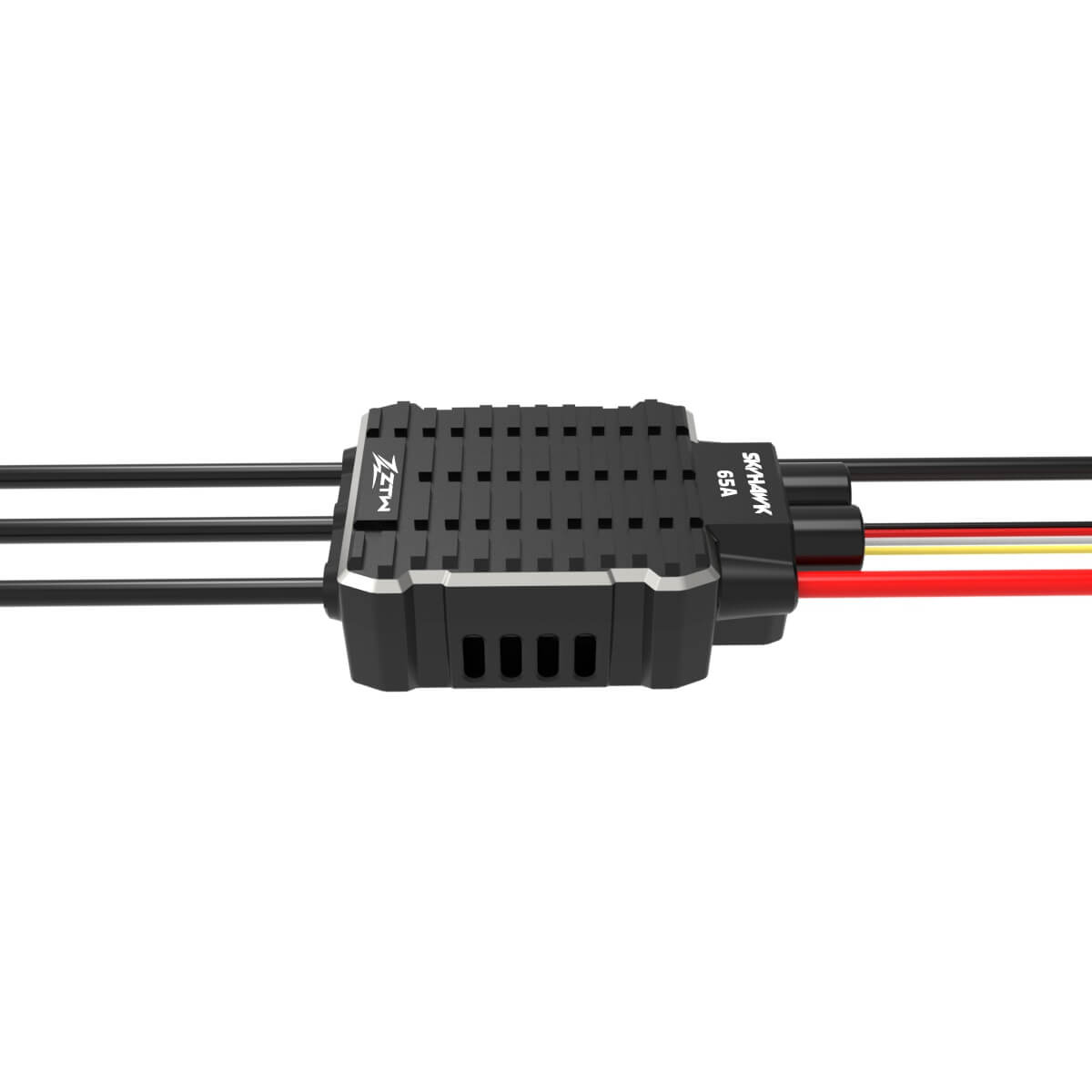

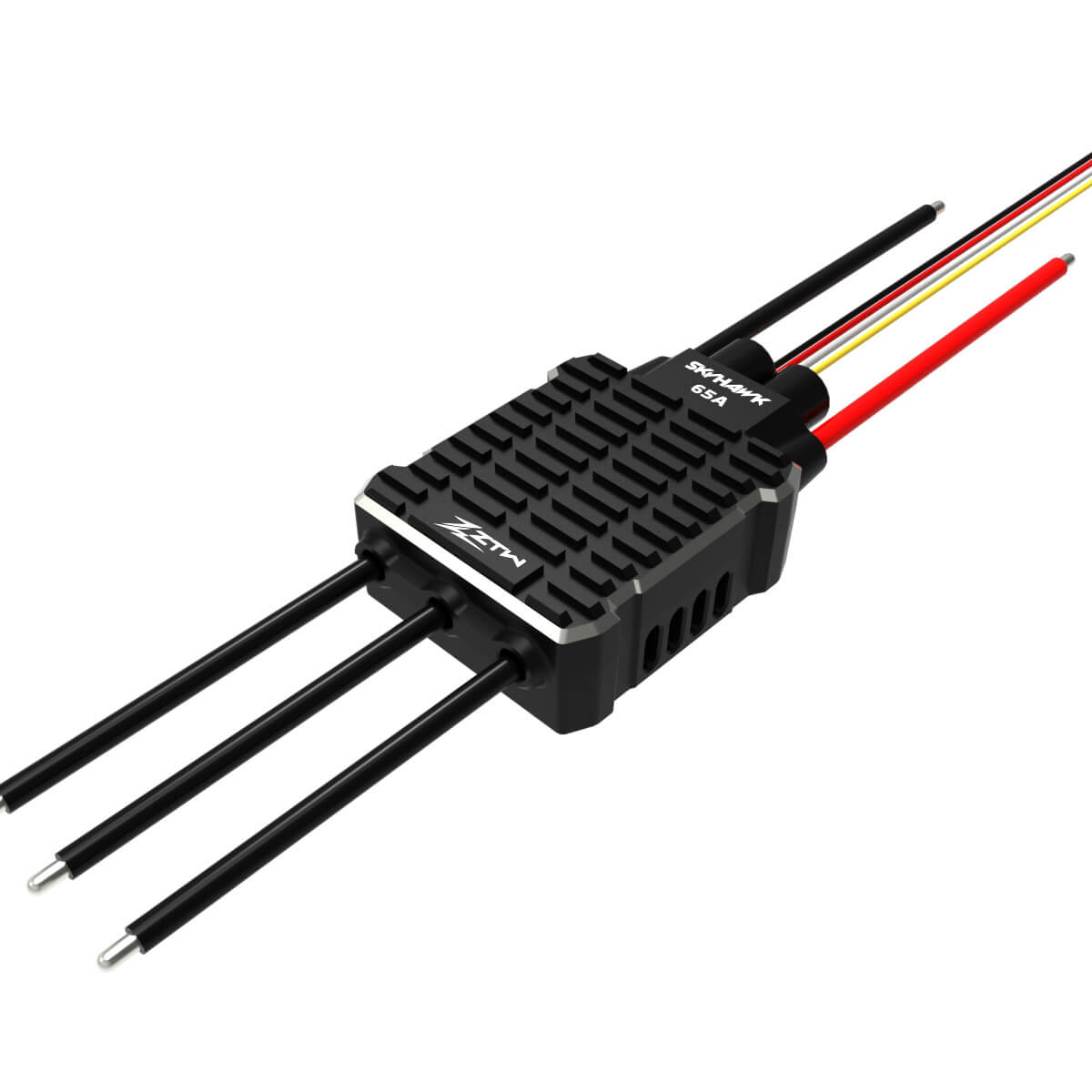

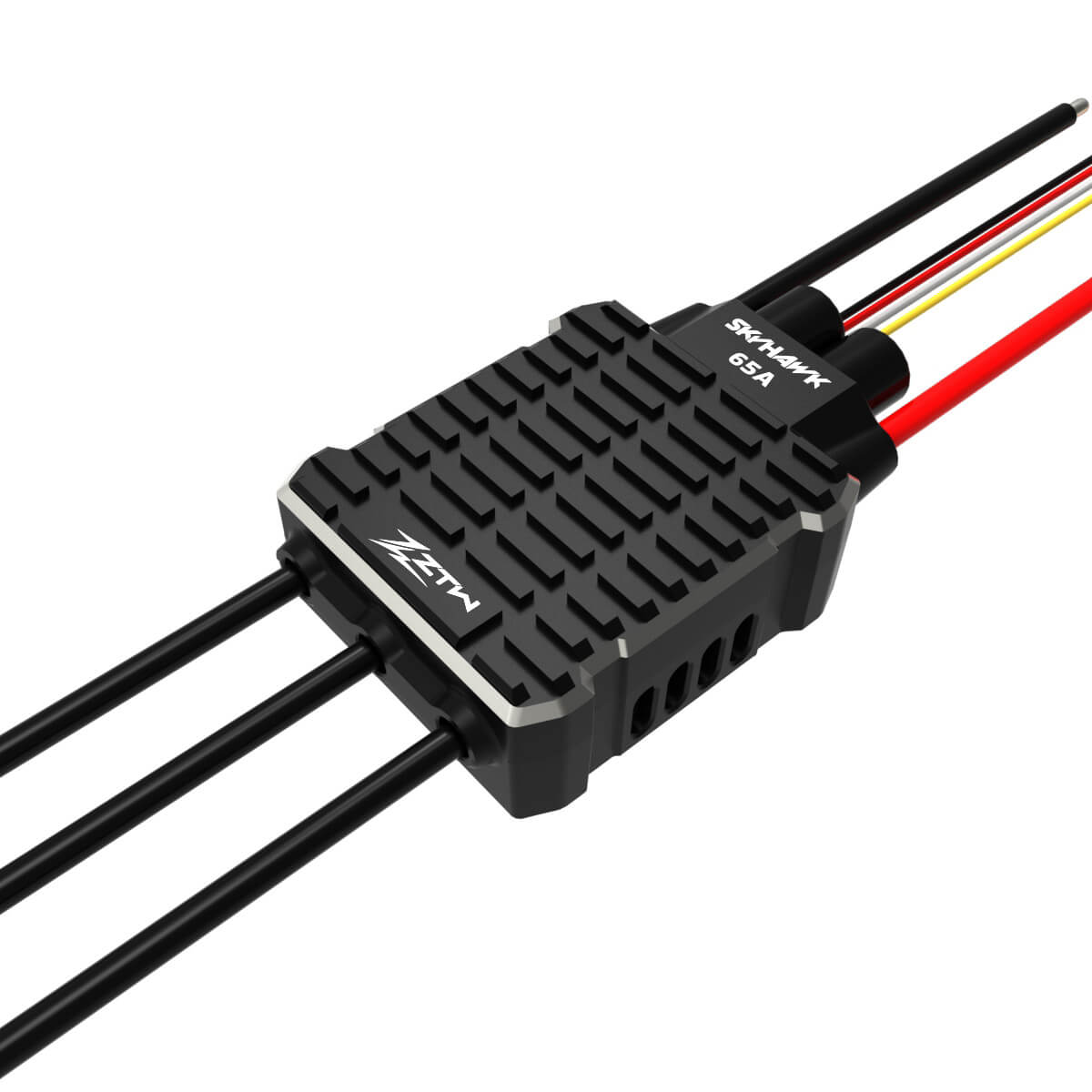

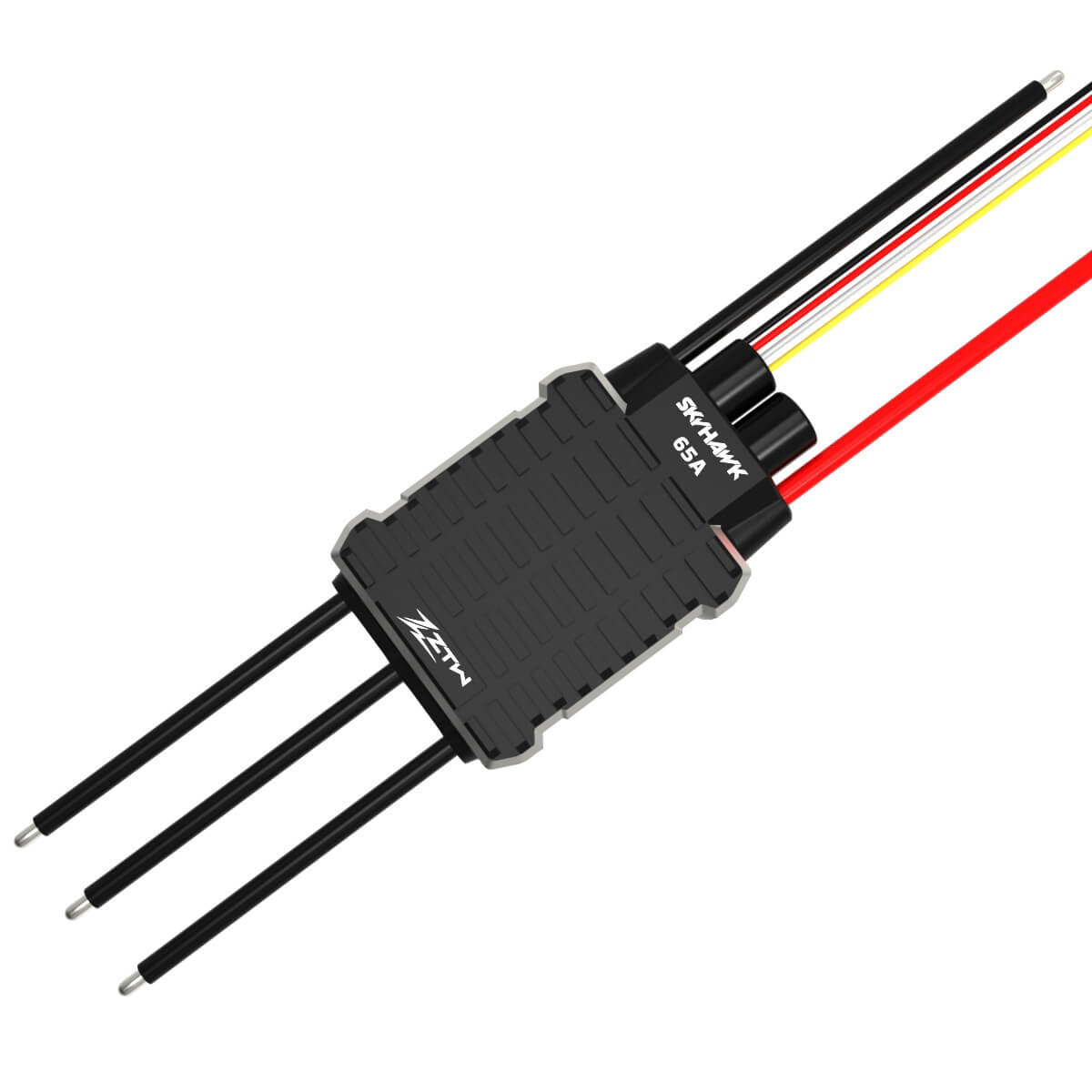

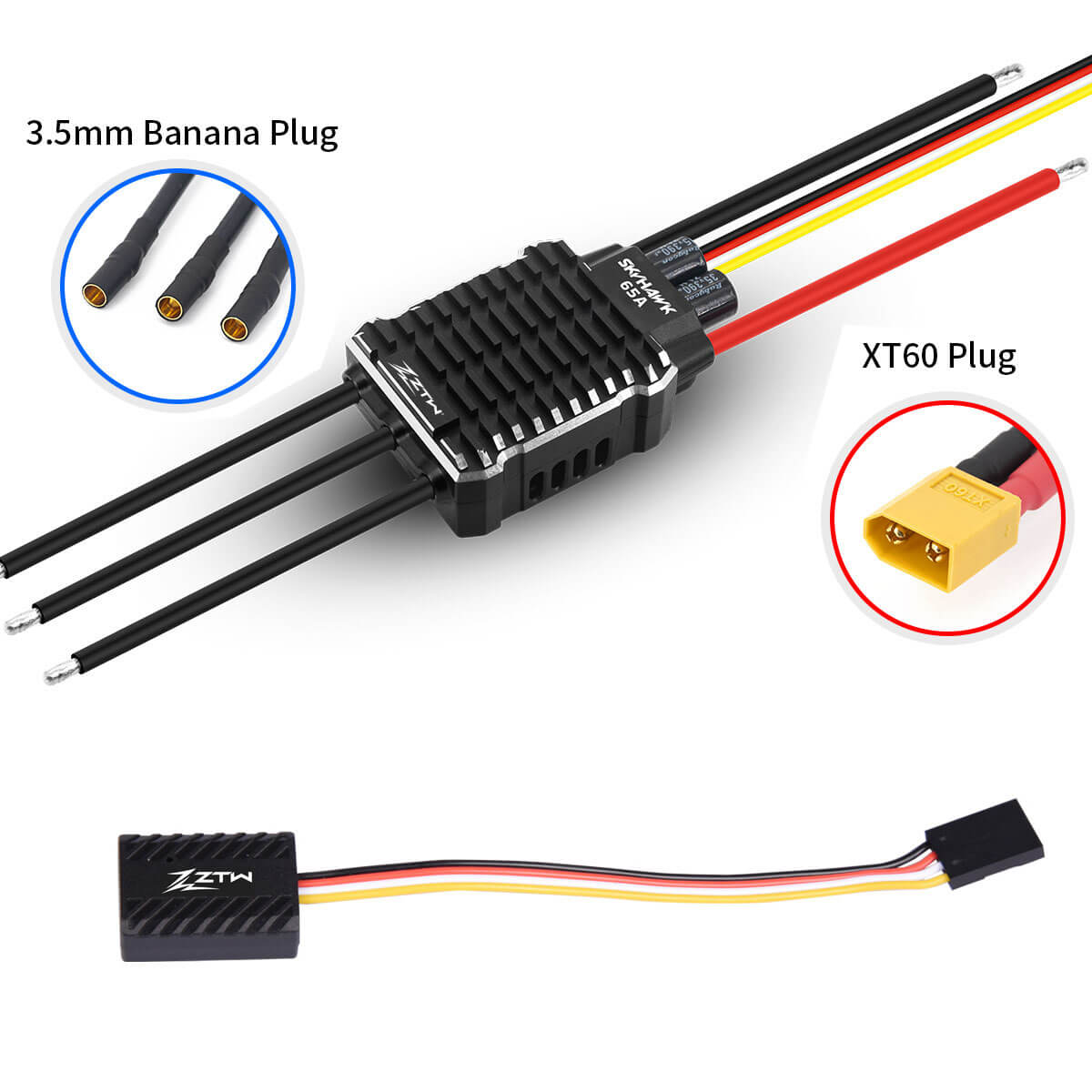

ZTW Skyhawk 65A ESC 3-6S SBEC For RC Helicopter
We(ZTW) have released a new 32-bit Skyhawk 65A ESC 3-6S built-in SBEC 6V/7.4V/8.4V 10A for RC airplane F3A F3C 380-450 helicopter.
Key Features:
1. Adopting high performance 32-bit M4 microprocessor with a running frequency of 170MHz, supported much stronger computing ability and faster running speed.
2. Adopting new generation craft on the MOSFET, low heat generation, large instantly withstand current, and high reliability.
3. Self-check function: after the ESC powered on, it will automatically check if have the power short circuit ,motor lose phase, throttle is not at zero position problem, and voltage range.
4. The special ESC case design and the unique fan guard structure greatly enhance the ESC heat dissipation performance.
5. There are two flight modes: fixed-wing mode and helicopter mode.
6. Equipped with the helicopter speed-control function, the speed sensitivity is adjustable and easy to operate.
7. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.

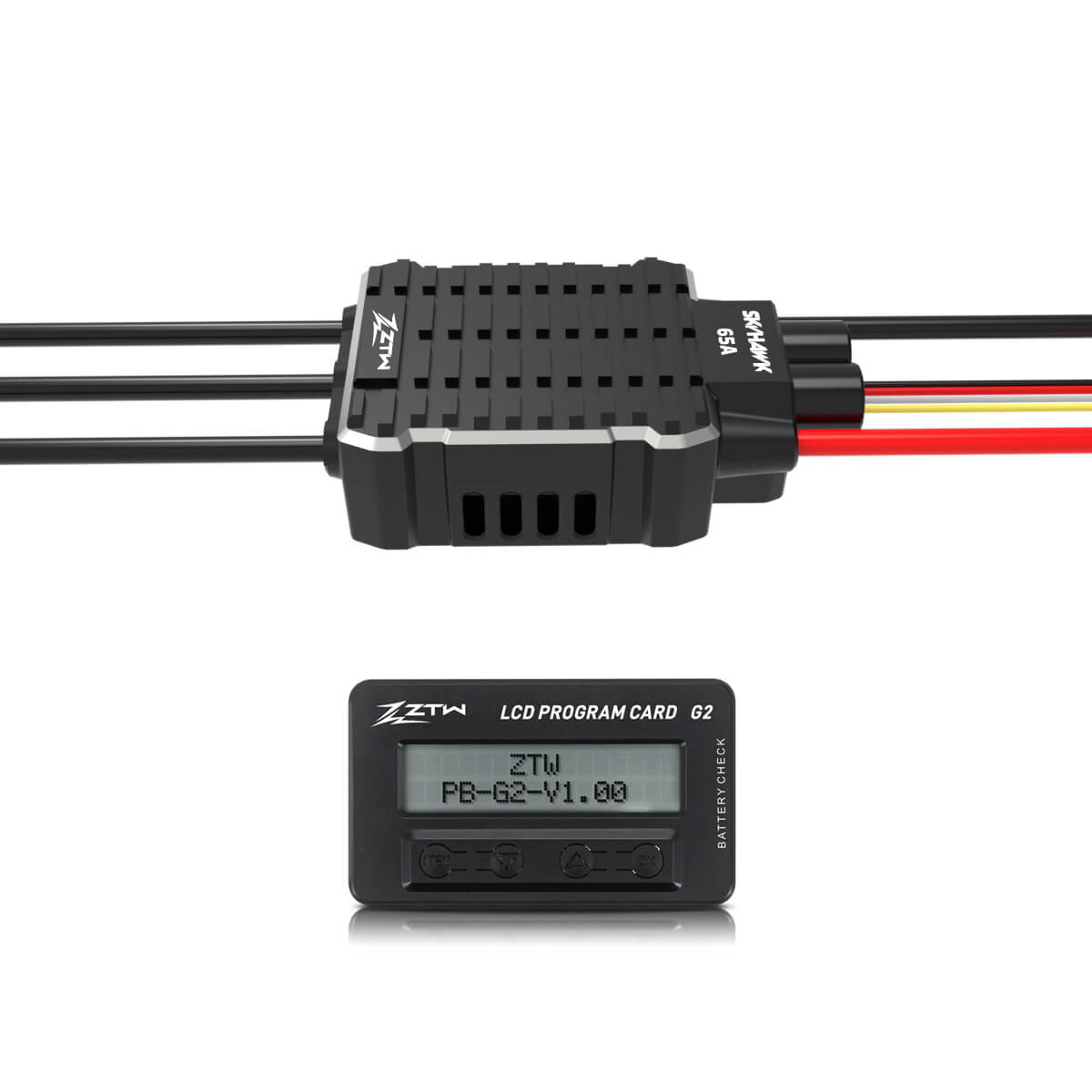

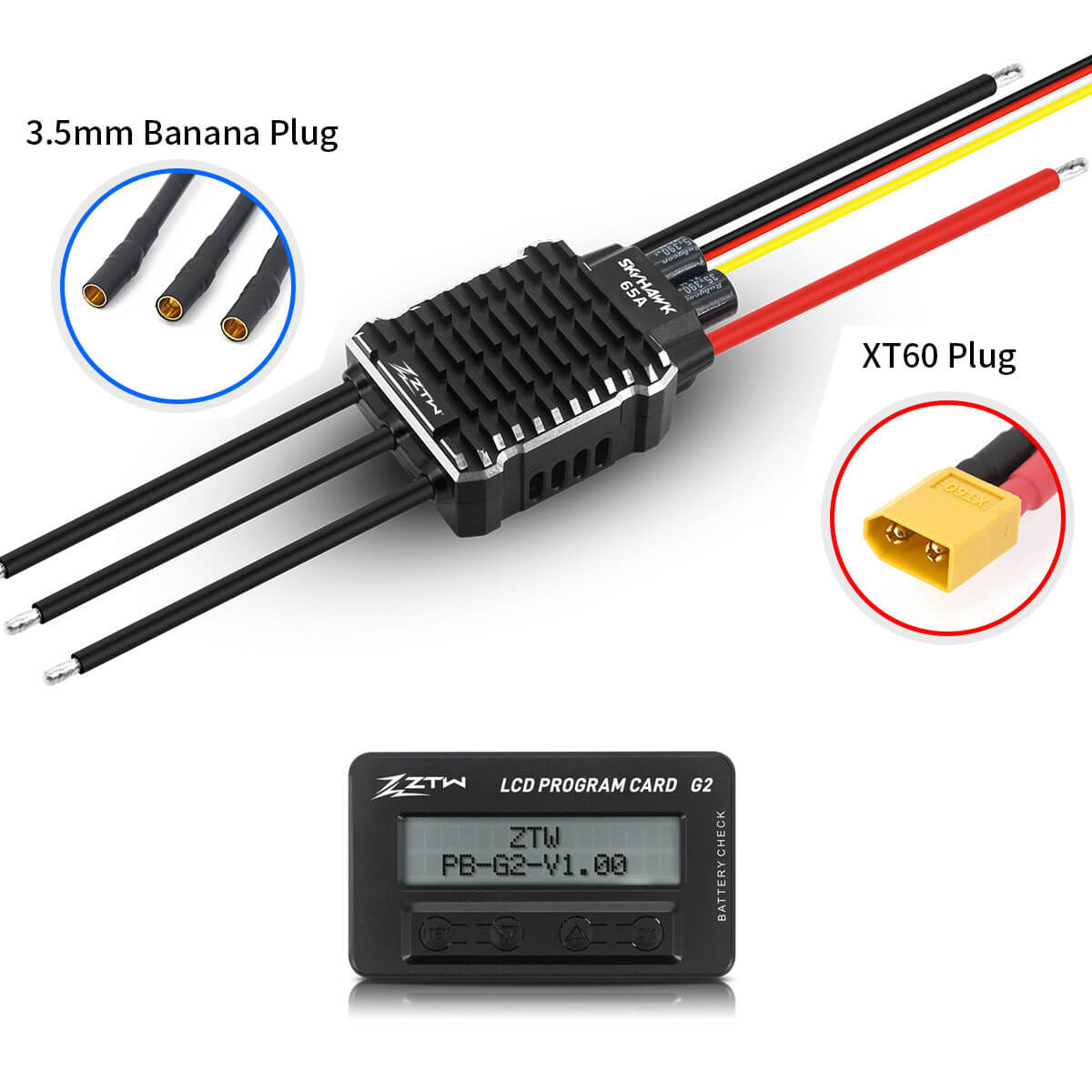

8. The ESC has a separate programming interface to connect with LCD programming card or Bluetooth module for programming.
9. Supporting data returning function: current, voltage, temperature, RPM, throttle and ESC status code.

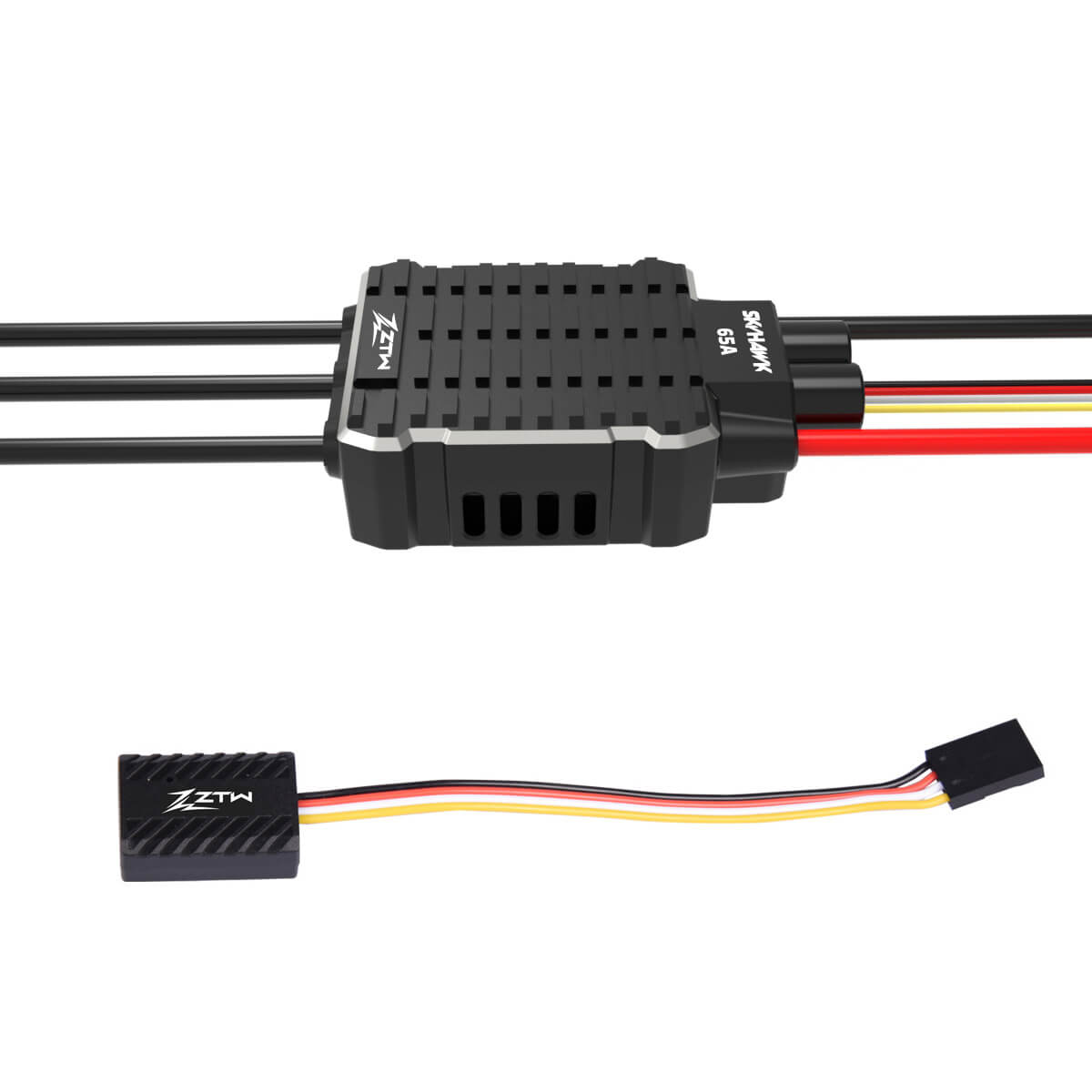

10. Bluetooth module supported, change the parameter settings, software upgrading, data recording and the operation can be completed via the mobile phone (Apple and Android) APP.
11. Multiple protections: abnormal power-on voltage protection, start up protection, temperature protection,throttle signal loss protection, over load protection,low voltage protection, over current protection.
| Model | Skyhawk 65A 3-6S SBEC |
| Continuous Current(A) | 65 Amps |
| Burst Current(A) | 80 Amps |
| Voltage | 3-6S LiPo |
| Power Wire | 14 Gauge 100mm-Red/100mm-Black |
| Motor Wire | 14 Gauge 70mm-Black |
| BEC Output | 6V/7.4V/8.4V Adjustable 10A |
| Size(not including wires) | 60*34*22mm(L*W*H) |
| Weight | 55g |
| Firmware Upgrade | Supported |
