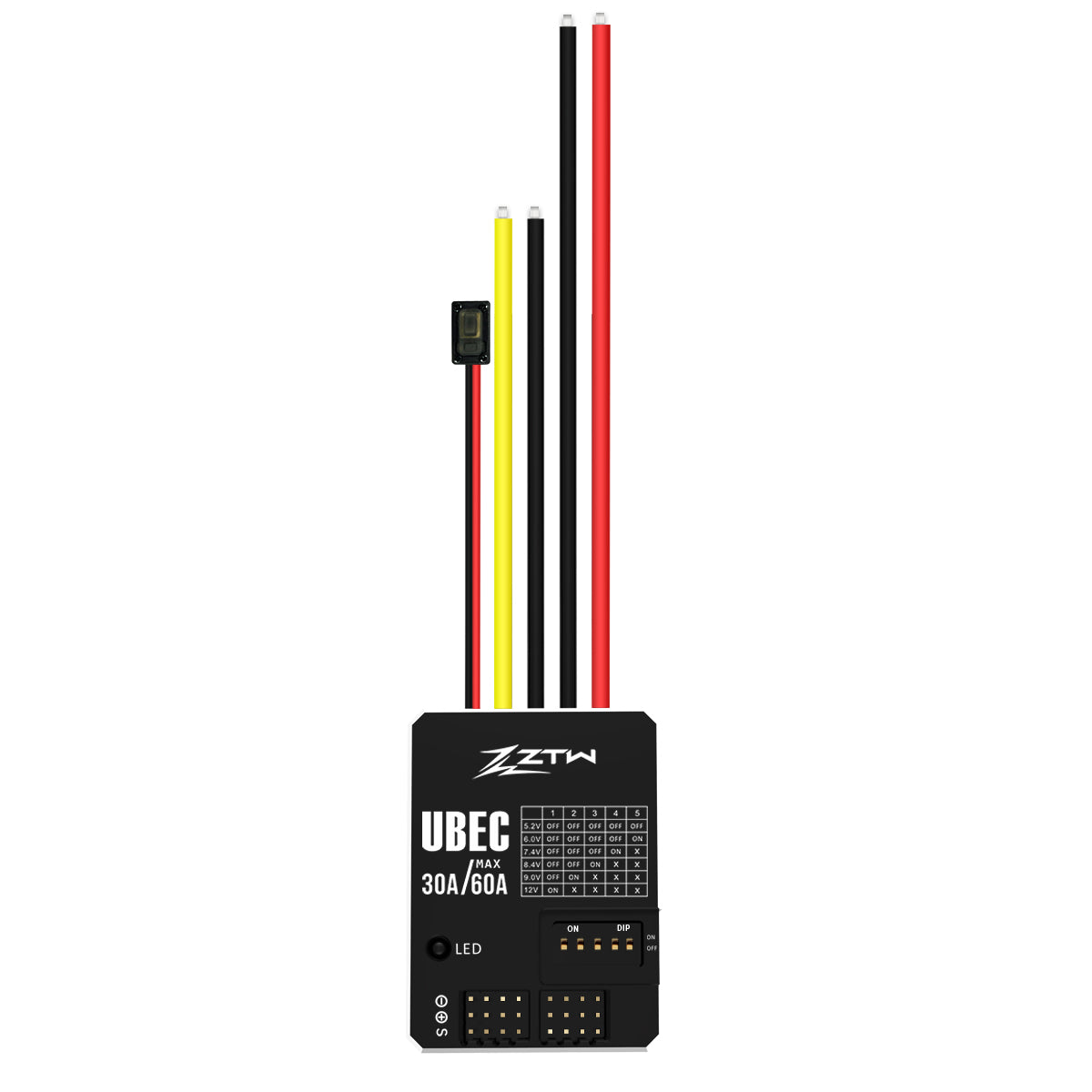

ZTW UBEC 30A HV 3-18S Adjustable Output Voltage 5.2V-12V External BEC
We(ZTW) have released UBEC 30A HV 3-18S Adjustable Output Voltage 5.2V-12V External BEC.

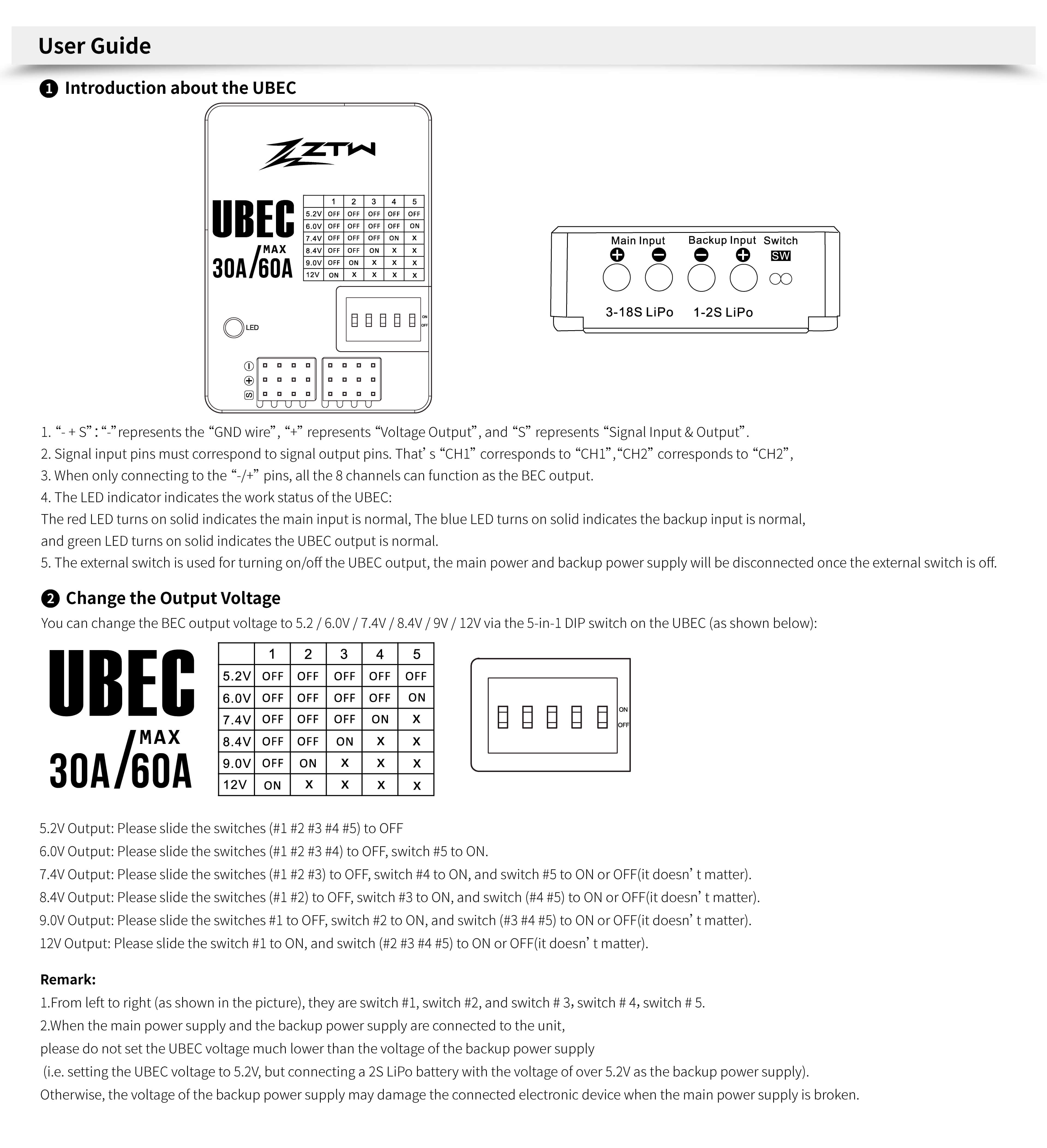

2. Adjustable output voltage (5.2V / 6.0V / 7.4V / 8.4V / 9V / 12V) is applicable for servos with different voltages.
3. Multiple protections include over current protection, , over heat protection, low voltage protection,(output end) short circuit protection, (output end) anti-backflow protection.

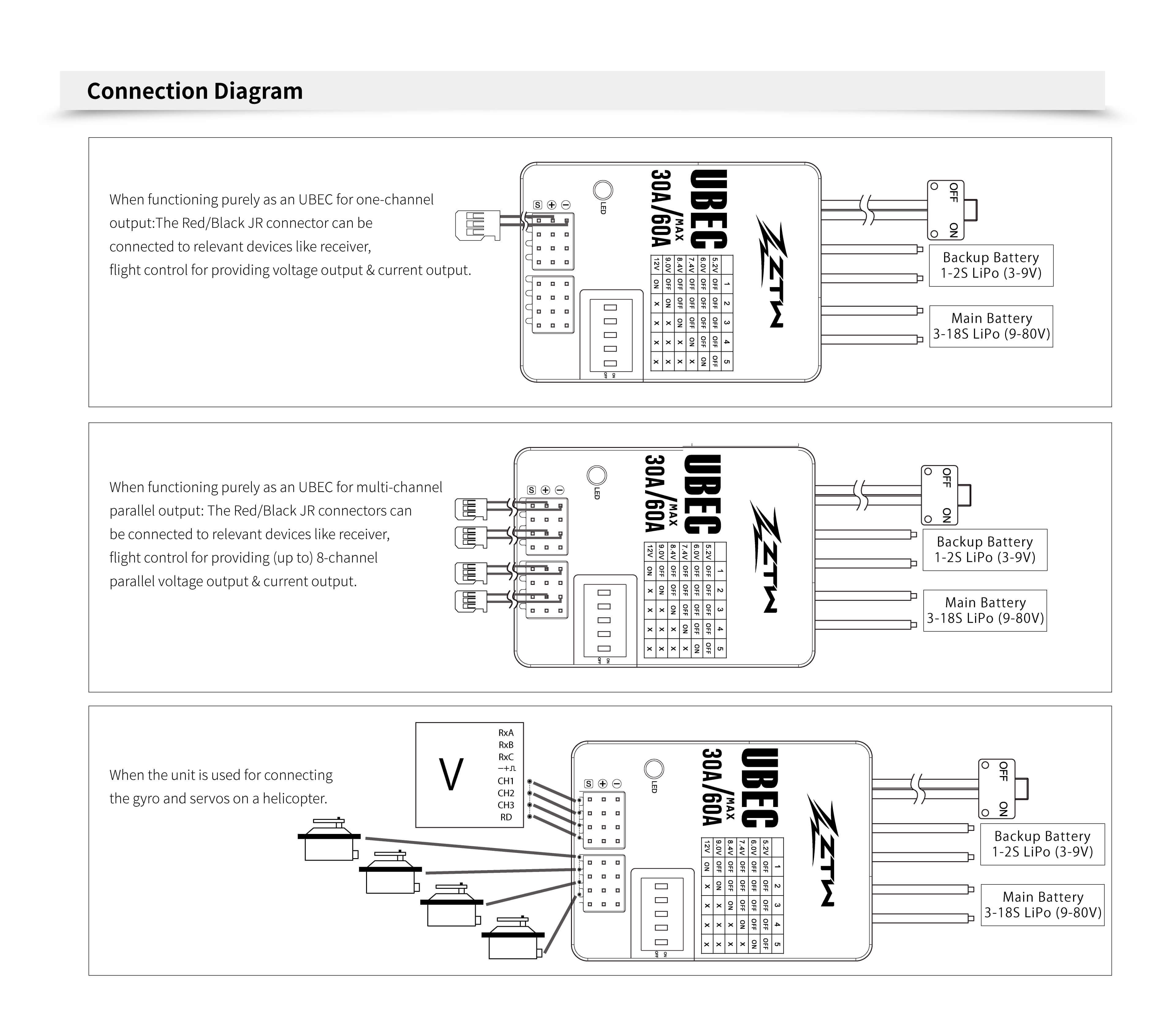

4. 8-channel parallel outputs for greater current endurance.
5. External switch allows to turn on/off the UBEC easily.
6. LED indicator for indicating the work status of the UBEC and the connecting status of the backup power supply.
| Main Input Voltage | 3-18S LiPo (9-80V) |
| Backup Input Voltage | 1-2S LiPo (3-9V) |
| Output Voltage | 5.2V/6.0V/7.4V/8.4V/9V/12V |
| Output Amperage | Continuous Current:30A; Peak Current: 60A |
| Size(L*W*H) | 55x41x17mm |
| Weight | 75g |
