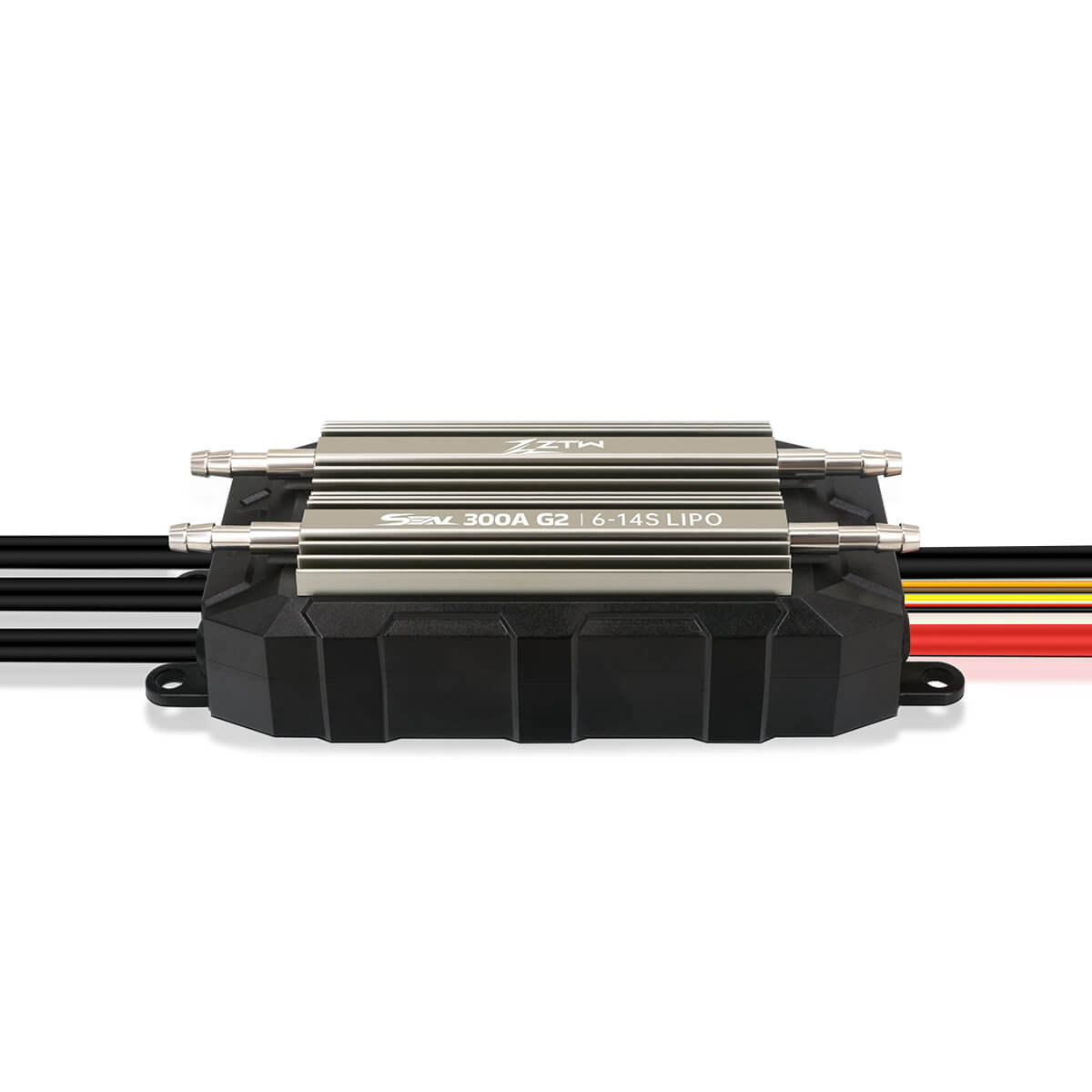

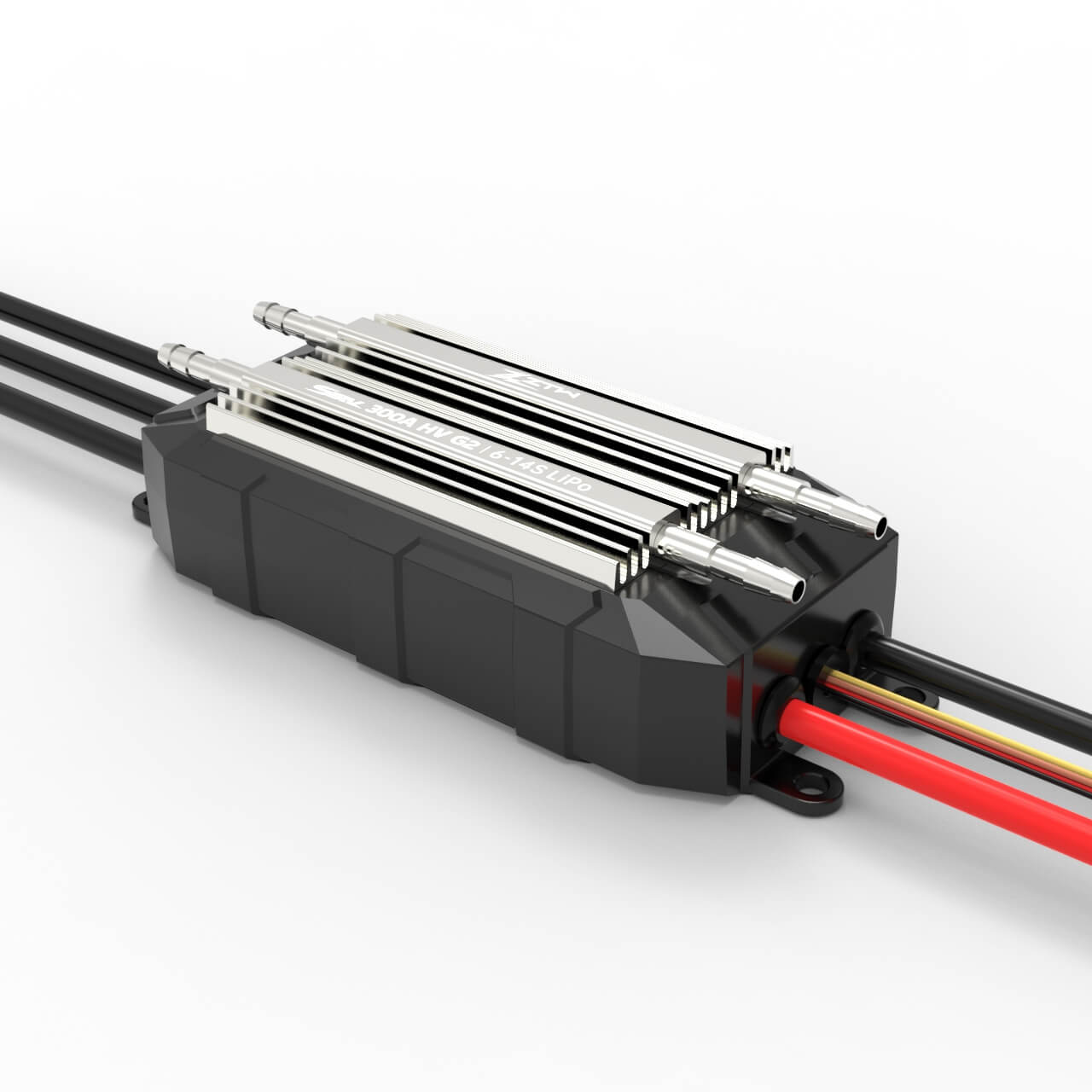

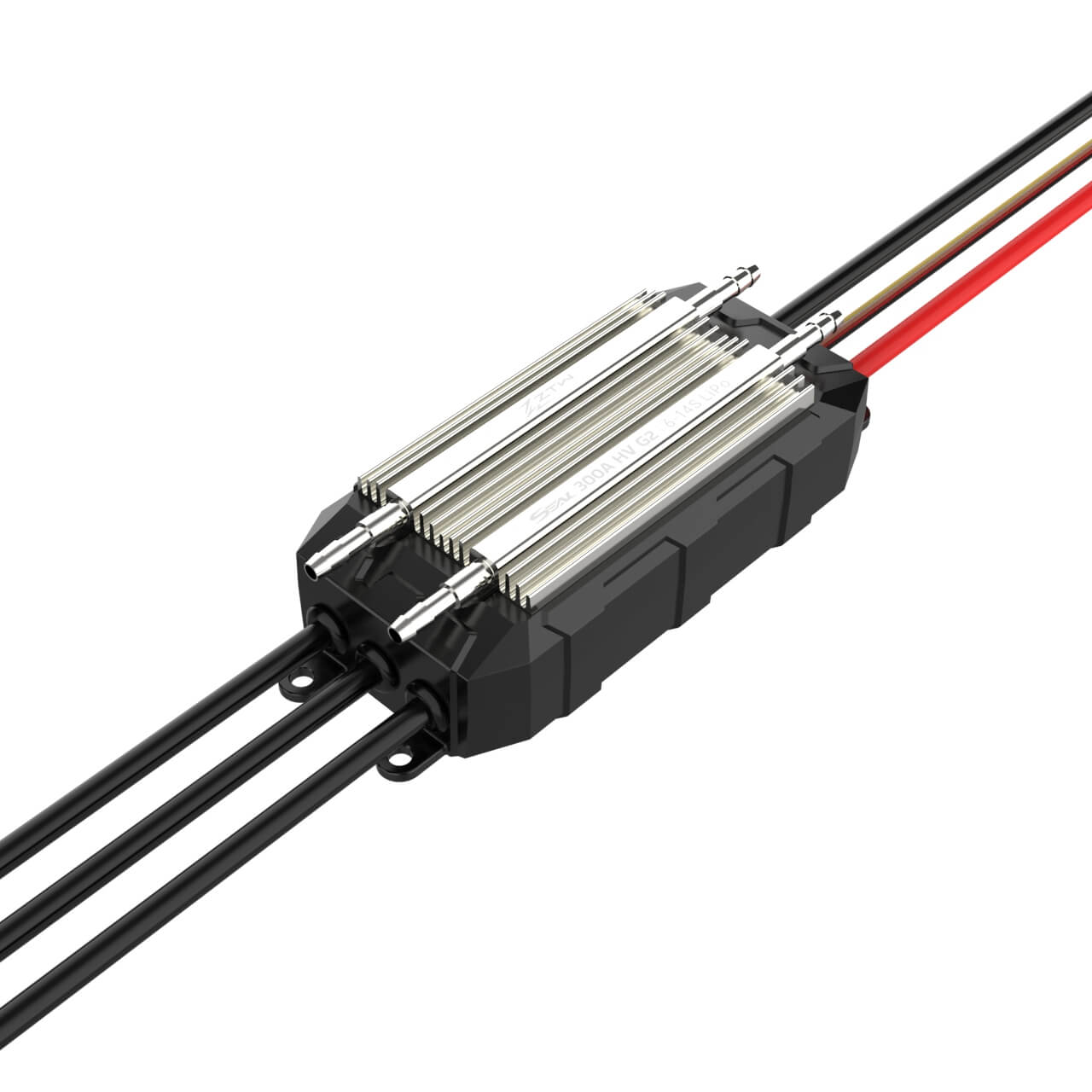

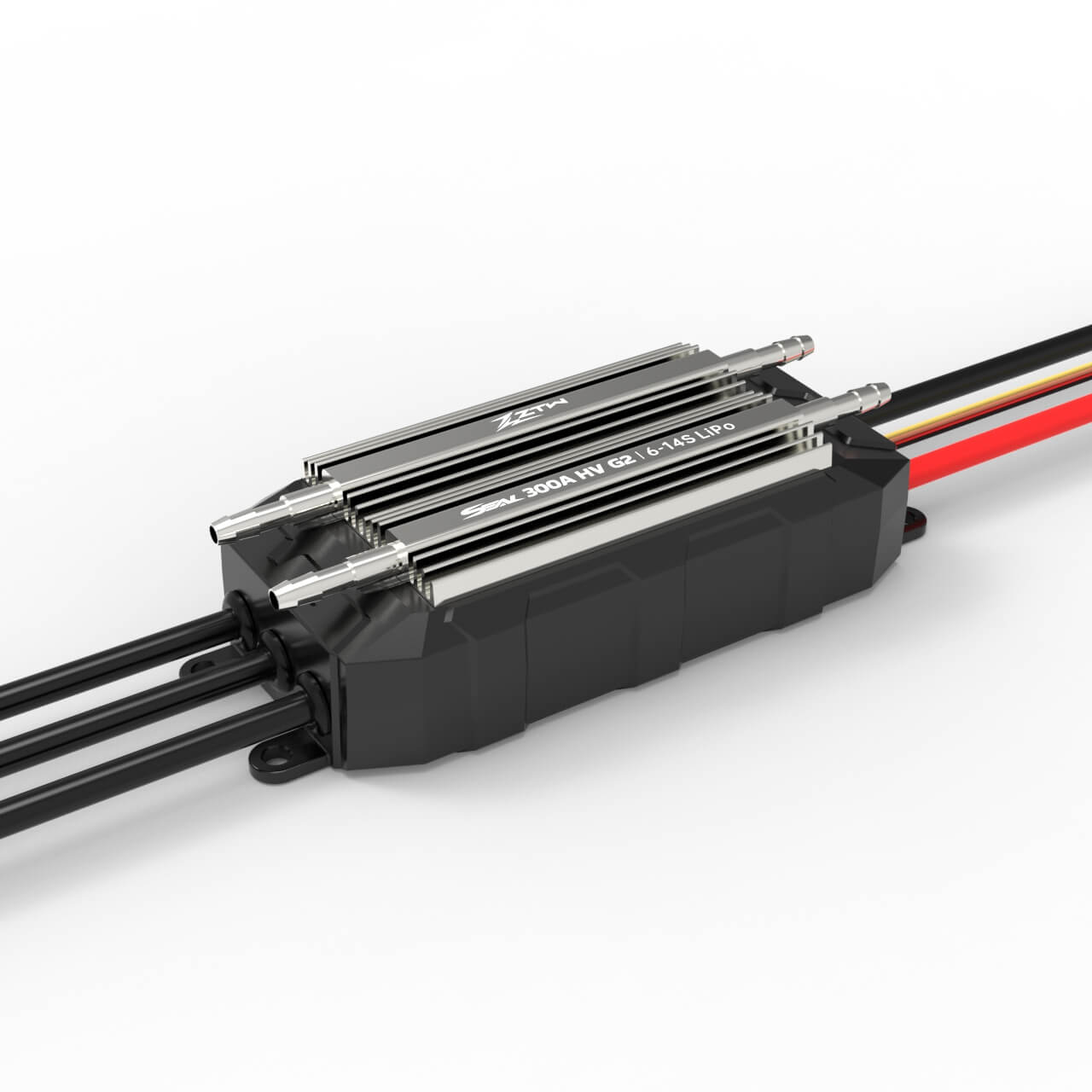

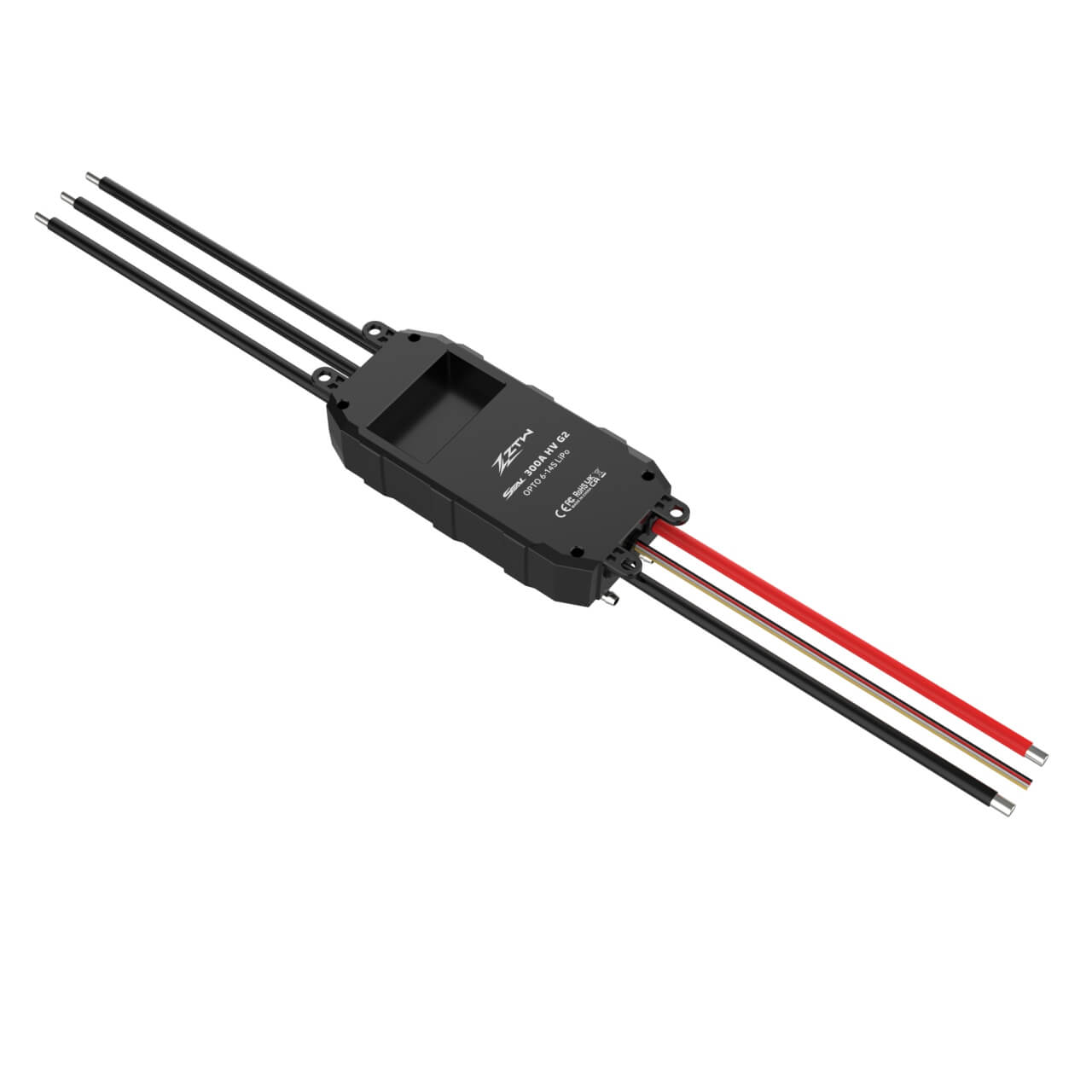

ZTW Seal G2 300A ESC HV 6-14S For RC Boat
Description:
We(ZTW) have released a new 32-bit version of the Seal 300A with new compact design that is a full 100 grams lighter, shorter, and narrower than its predecessor.
The SEAL G2 Series is designed specifically for RC Boat applications, featuring a waterproof design. The 300A ESC includes two water cooling pipes as well as customized heat sinks. However, the 300A ESC does not offer a built-in BEC, requiring an additional battery pack to operate the servo. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, the operation frenquency is up to 170MHz which makes the ESC stronger computing ability and faster running speed.
3. The waterproof design (rates as IP 67) allows this ESC to work in wet conditions, and it is equipped with metal water cooling to ensure efficient heat dissipation.
4. Super smooth start-up and accurate throttle linearity make the ESC suitable for various of applications such as, all kinds of RC boat models, electric surfboard and other underwater applications.
5. The SC has two running modes for different applications:“Forward Only” and “Forward and Backward”.
6. The ESC has freewheeling which makes the ESC with higher driving efficiency and more energy-saving.
7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss, over-current, abnormal power-on voltage, over-load protection.
8. Support high RPM motors, and compatible with most motors in the market.
9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW bluetooth module or LCD program card G2 needed.)
10. Support data communication with Futaba remote control (S.BUS2 protocol).(Only 130A HV,160A HV, 300A HV 6-14S ESCs have this feature.)
11. Support CAN protocol makes the ESC can be widly used for various of applications.
12. The ESC has data returning feature, it can send data in real-time: current, voltage, temperature, RPM, throttle and ESC status. And you can check the data via ZTW App or LCD program Card G2 in real-time.
We(ZTW) have released a new 32-bit version of the Seal 300A with new compact design that is a full 100 grams lighter, shorter, and narrower than its predecessor.
The SEAL G2 Series is designed specifically for RC Boat applications, featuring a waterproof design. The 300A ESC includes two water cooling pipes as well as customized heat sinks. However, the 300A ESC does not offer a built-in BEC, requiring an additional battery pack to operate the servo. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, the operation frenquency is up to 170MHz which makes the ESC stronger computing ability and faster running speed.
3. The waterproof design (rates as IP 67) allows this ESC to work in wet conditions, and it is equipped with metal water cooling to ensure efficient heat dissipation.
4. Super smooth start-up and accurate throttle linearity make the ESC suitable for various of applications such as, all kinds of RC boat models, electric surfboard and other underwater applications.
5. The SC has two running modes for different applications:“Forward Only” and “Forward and Backward”.
6. The ESC has freewheeling which makes the ESC with higher driving efficiency and more energy-saving.
7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss, over-current, abnormal power-on voltage, over-load protection.
8. Support high RPM motors, and compatible with most motors in the market.
9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW bluetooth module or LCD program card G2 needed.)
10. Support data communication with Futaba remote control (S.BUS2 protocol).(Only 130A HV,160A HV, 300A HV 6-14S ESCs have this feature.)
11. Support CAN protocol makes the ESC can be widly used for various of applications.
12. The ESC has data returning feature, it can send data in real-time: current, voltage, temperature, RPM, throttle and ESC status. And you can check the data via ZTW App or LCD program Card G2 in real-time.
Specification:
Model | Seal G2 300A HV 6-14S |
Continuous Current(A) | 300 Amps |
Burst Current(A) | 1800 Amps |
Voltage | 6-14S Lipo (18-42 NiMH) |
Power Wire | 8 Gauge130mm-Red/130mm-Black |
Motor Wire | 8 Gauge 138mm-Black |
BEC Output | None, requires RX pack or BEC Eliminator Circuit |
Size(not including wires) | 130mm (5.12")*65mm (2.56")*38mm (1.50")(L*W*H) |
Weight | 542g |
Water fitting thread size | m6 |
