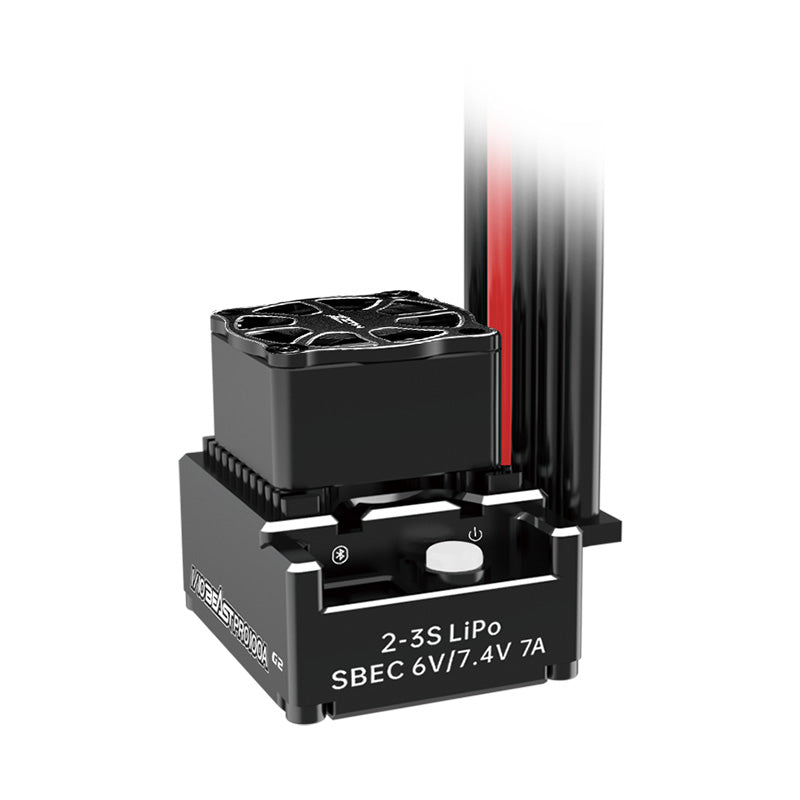

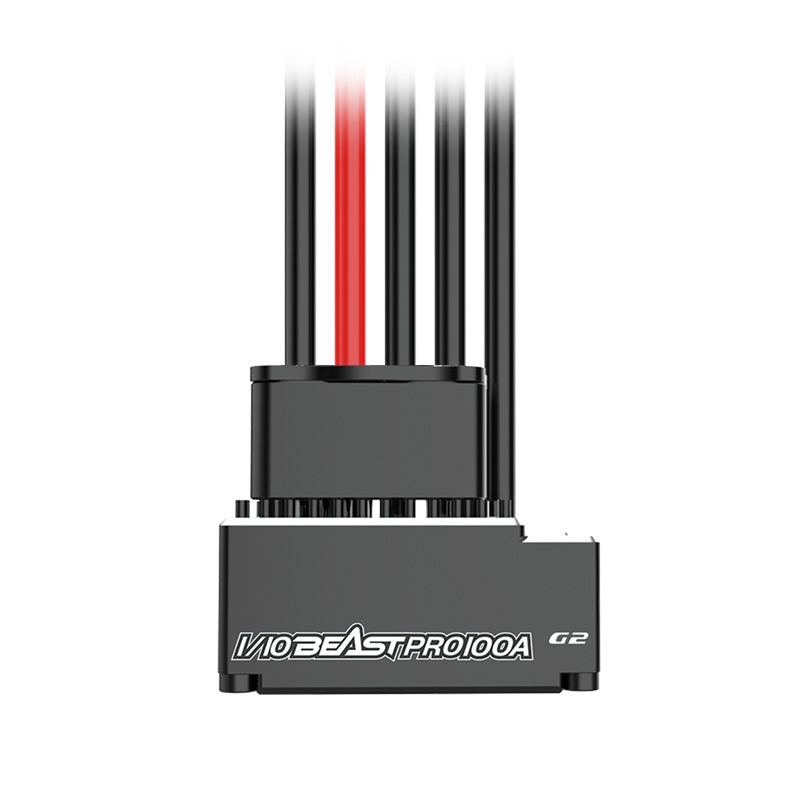

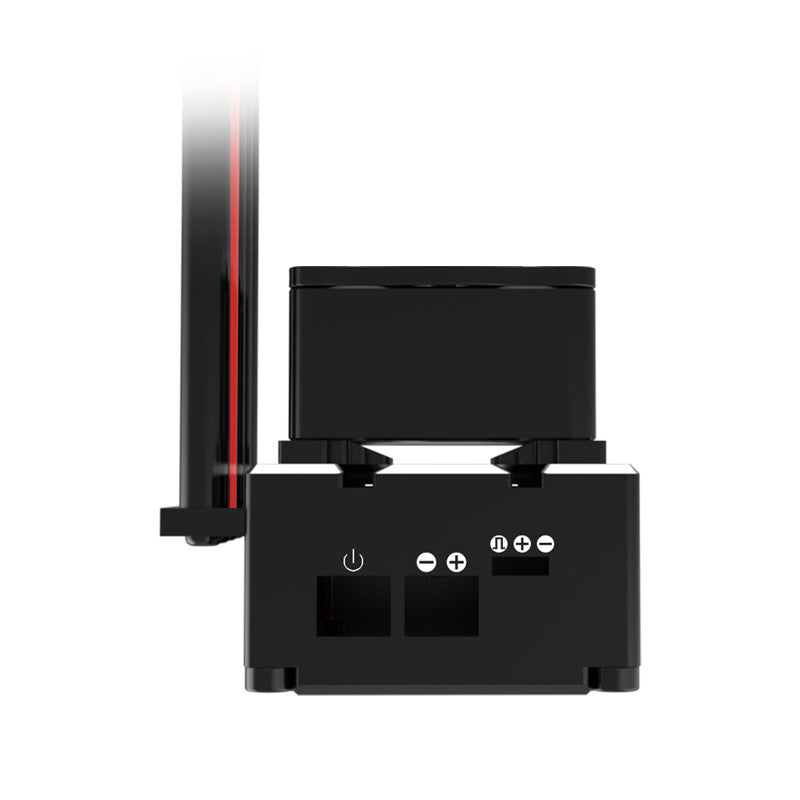

ZTW Beast PRO G2 100A ESC Mini Turbo 2-3S For 1/10th RC Racing Car
Description:
Description:
We(ZTW) have released a new 32-Bit 1/10th Beast PRO G2 100A ESC Mini, it is programmed via phone APP, so please kindly note the external external bluetooth module will be needed.
Key Features:
1. Compact size, light weight & high power
2. Full aluminum case and heat sink design.
3. Plenty of adjustable parameters to adjust.
4. Built-in Power Reverse Polarity Protection Circuit.
5. Built-in adjustable BEC 6V/7.4V, the maximum output current of up to 7A
6. 32-bit microprocessor can support more powerful processing capability and more accurate motor output.
7. Enhanced throttle response, excellent acceleration, linearity and drive ability, compatible with sensored and sensorless mode.
8. Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection etc.
9. The ESC allows programming the parameter settings and firmware upgrades via app (support real time programming, no need restart the esc).
10. Data logging for real-time maximum ESC temperature, motor RPM, Voltage and Adv. Timing and so on.
Click here to download the user manual
Specification:
| Model | Beast PRO G2 100A Mini |
| Cont. Current | 100A |
| Burst Current | 600A |
| Motor Type | Sensored/Sensorless |
| Input Voltage | 2-3 Lipo |
| BEC Output | 6.0V,7.4V/7A |
| Size(L*W*H) | 31.5*25*30mm |
| Weight | 54g |
| ESC Programming Via | Mobile Phone APP |
| Firmware Upgrade | Supported |
| Waterproof | No |
| Car Applicable | 1/10th Racing |
