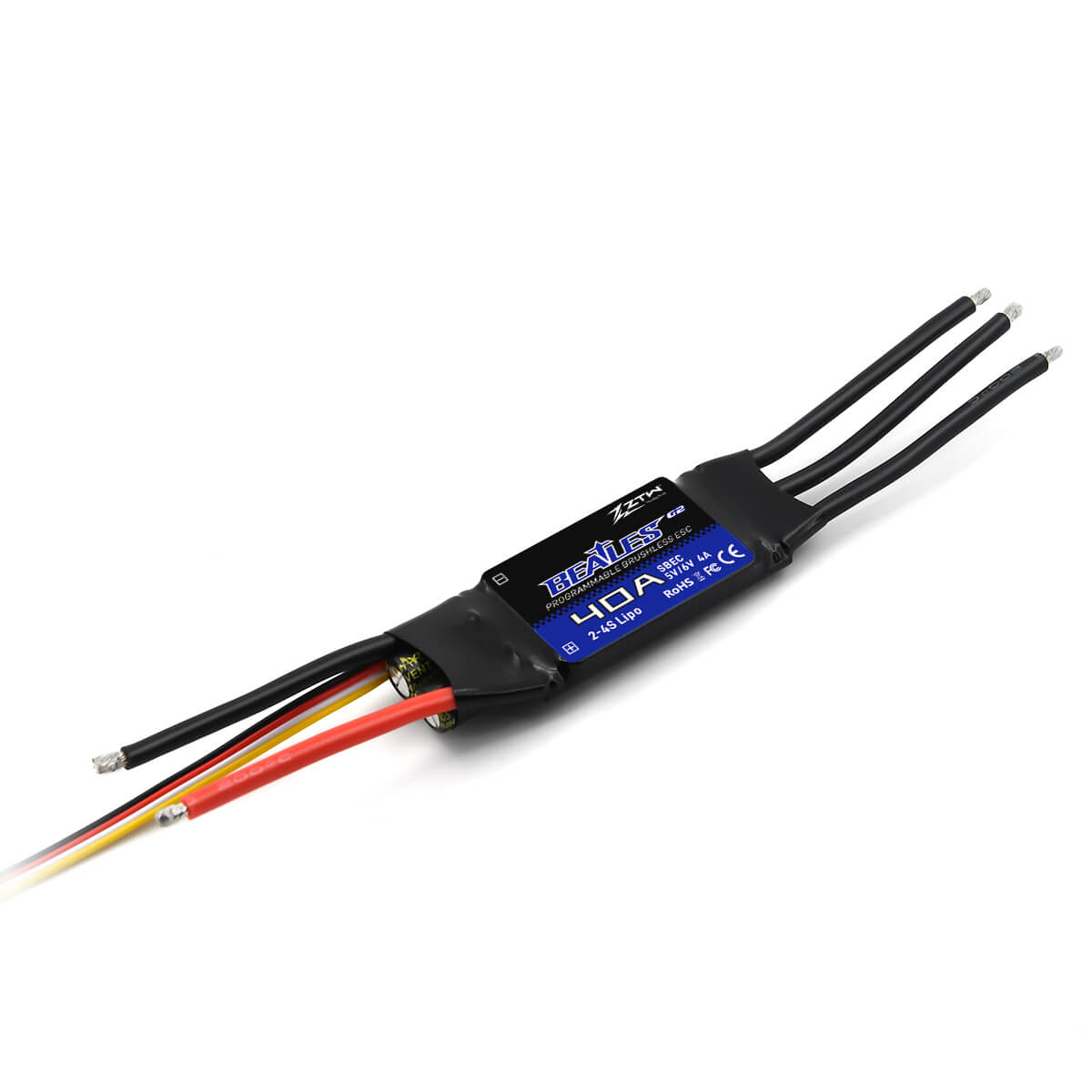

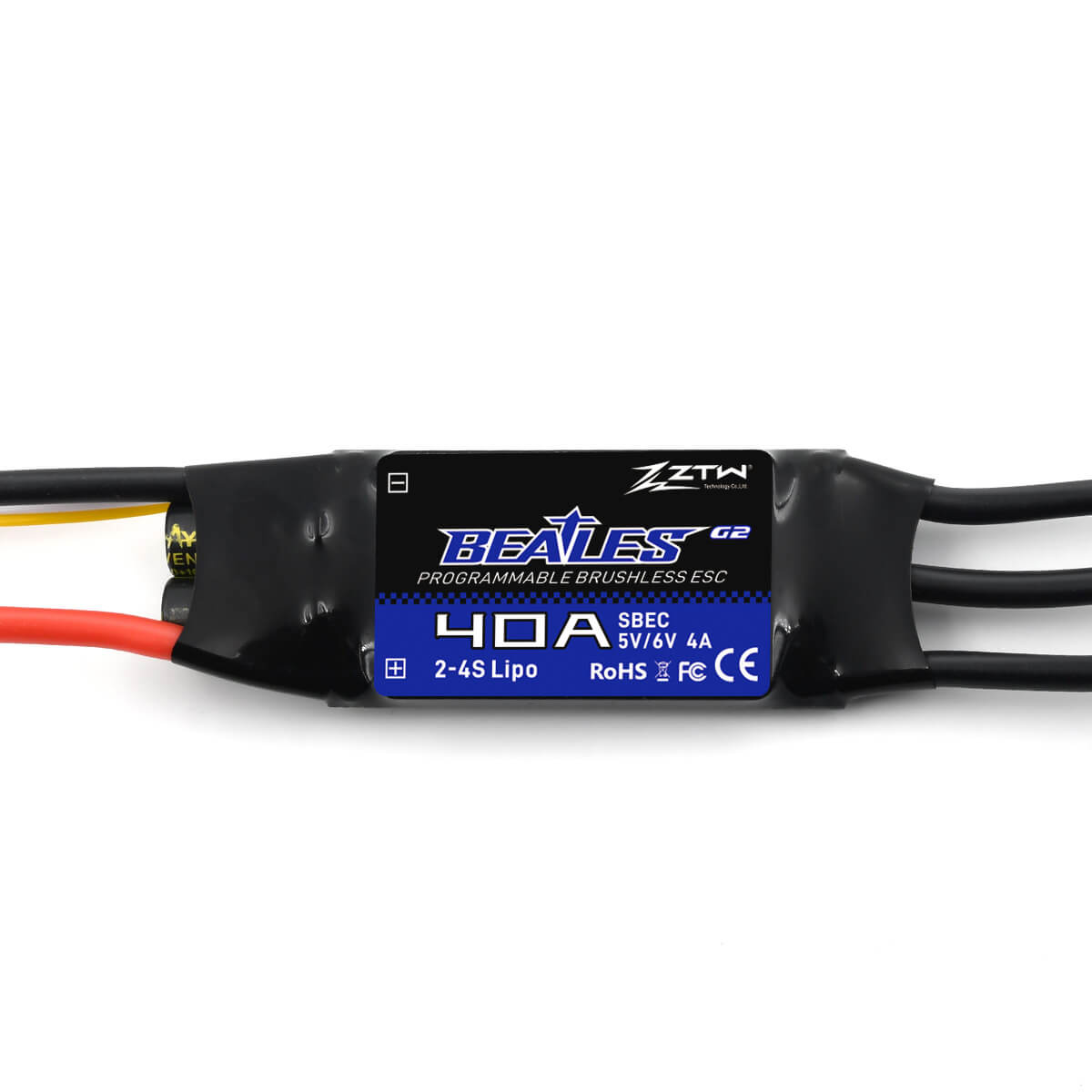

ZTW Beatles G2 40A ESC 2-4S SBEC For RC Airplane Fixed-wing
We(ZTW) have released a new 32-bit Beatles G2 40A ESC 2-4S SBEC for RC airplane, aircraft or fixed-wing 3D Flying.
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Freewheeling make the ESC with higher driving efficiency and more energy-saving.
5. Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful power to the servo.
6. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
7. Support high RPM motors, and compatible with most motors in the market.
8. SMR Function: it supports switching the motor rotation to decelerate when the airplane landing to the ground.
Note: The factory default is OFF, the 1Pin signal wire is completely invalid at this time. If you need to turn it on, using Phone App or transmitter to program it “ON”, plug the 3Pin signal wire into the throttle channel, and plug the 1Pin signal wire into any 2-stage switch channel of the receiver, then turn on the transmitter 2-stage switch. The SMR function is turned on now, you can change the forward and reverse directions of the motor by flipping the 2-stage switch of the transmitter.
Warning: This function can only be effective when the throttle is below 50%, and it is only allowed to be used when the airplane is landing on the ground, otherwise it may cause the ESC to burn!
9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card G2 needed).
| Model | Beatles G2 40A 2-4S SBEC |
| Continuous Current(A) | 40 Amps |
| Burst Current(A) | 55 Amps |
| Voltage | 2-4S LiPo/LiHV |
| Power Wire | 14 Gauge 70mm-Red/70mm-Black |
| Motor Wire | 14 Gauge 70mm-Black |
| BEC Output | 5V/6V Adjustable 4A |
| Size(not including wires) | 68*25*10mm(L*W*H) |
| Weight | 37g |
| Firmware Upgrade | Not Supported |
