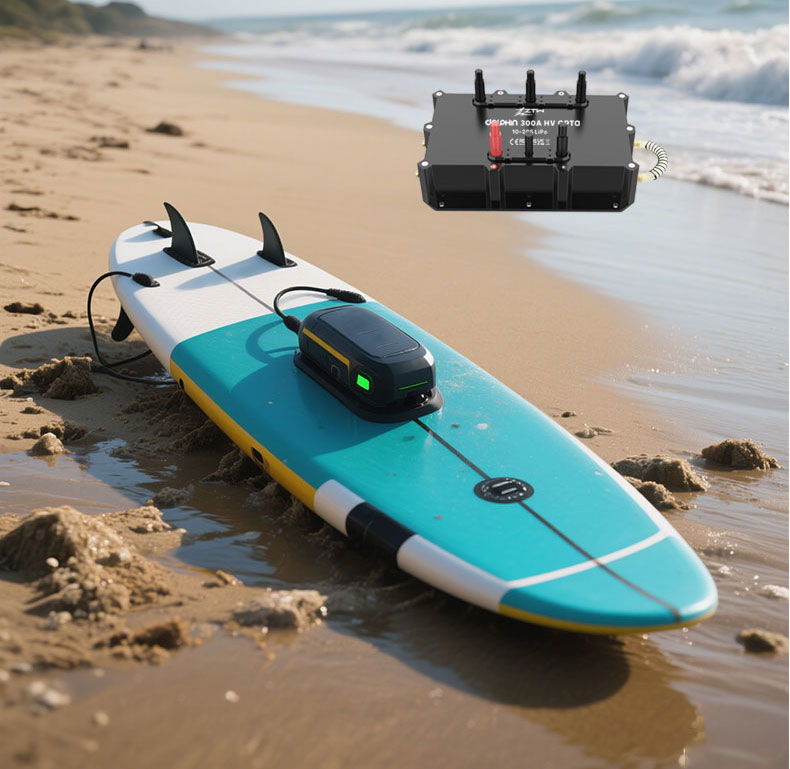

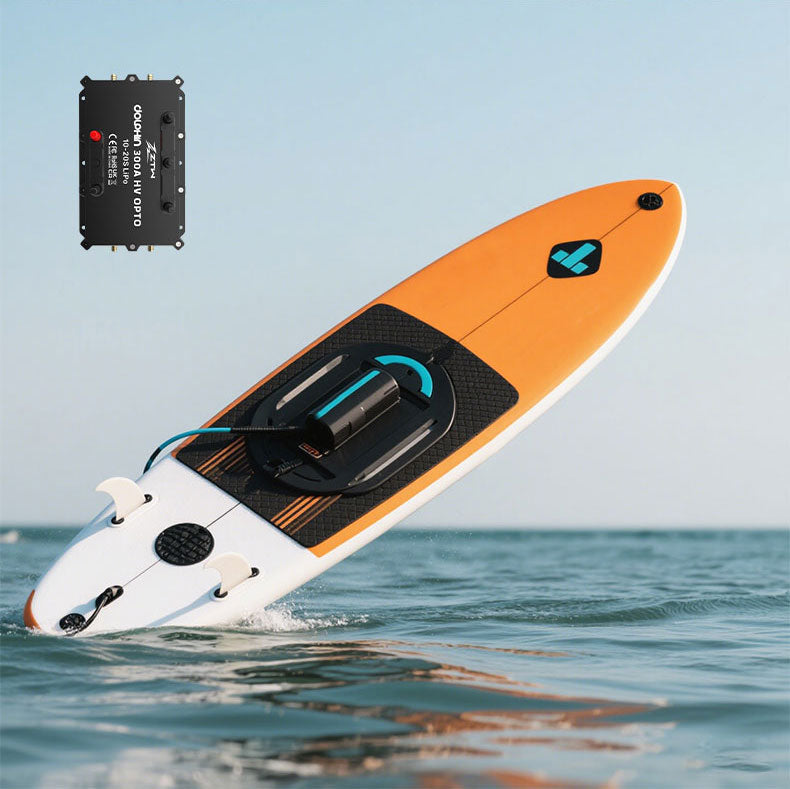

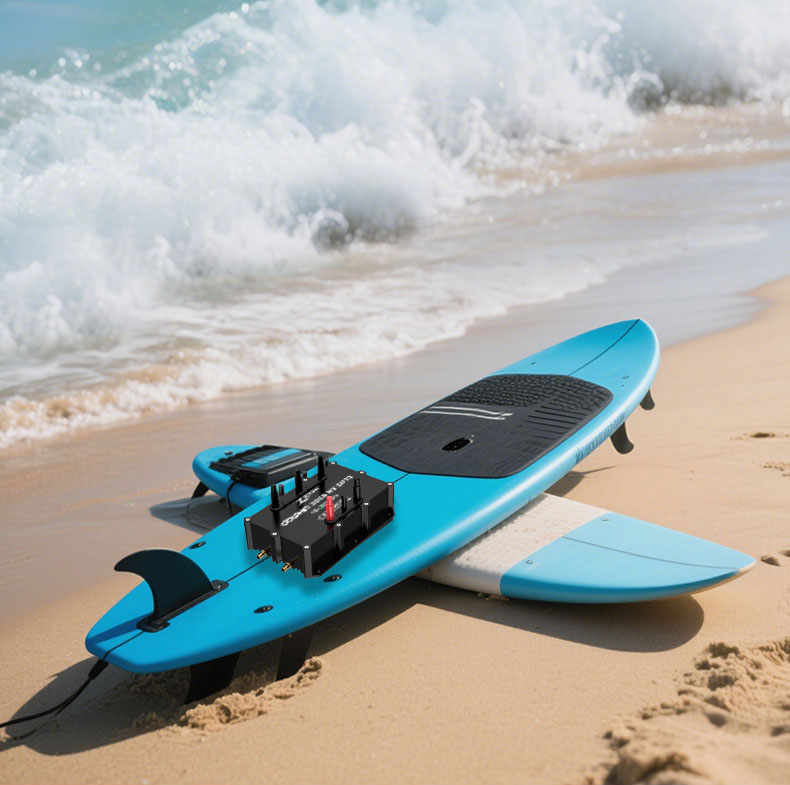

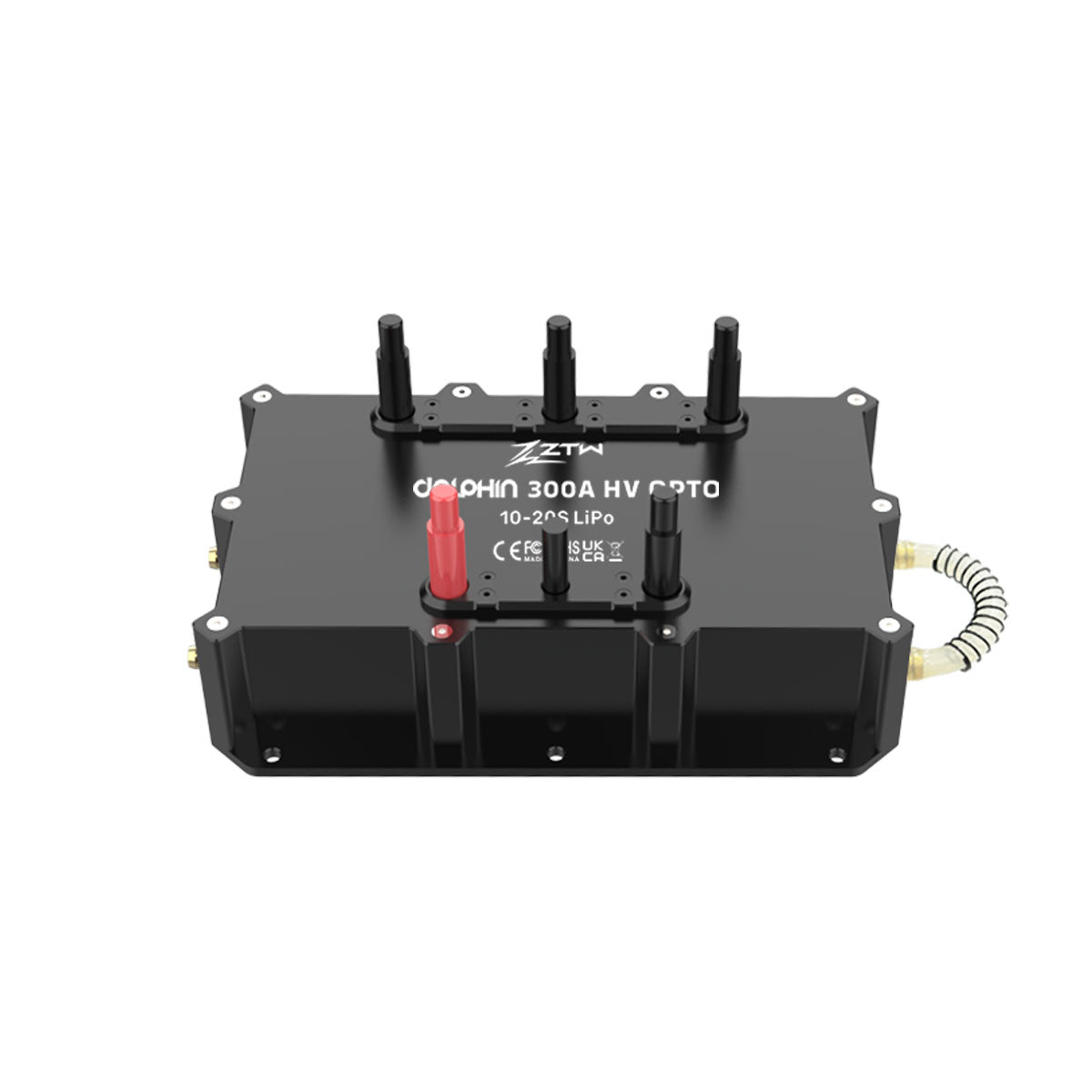

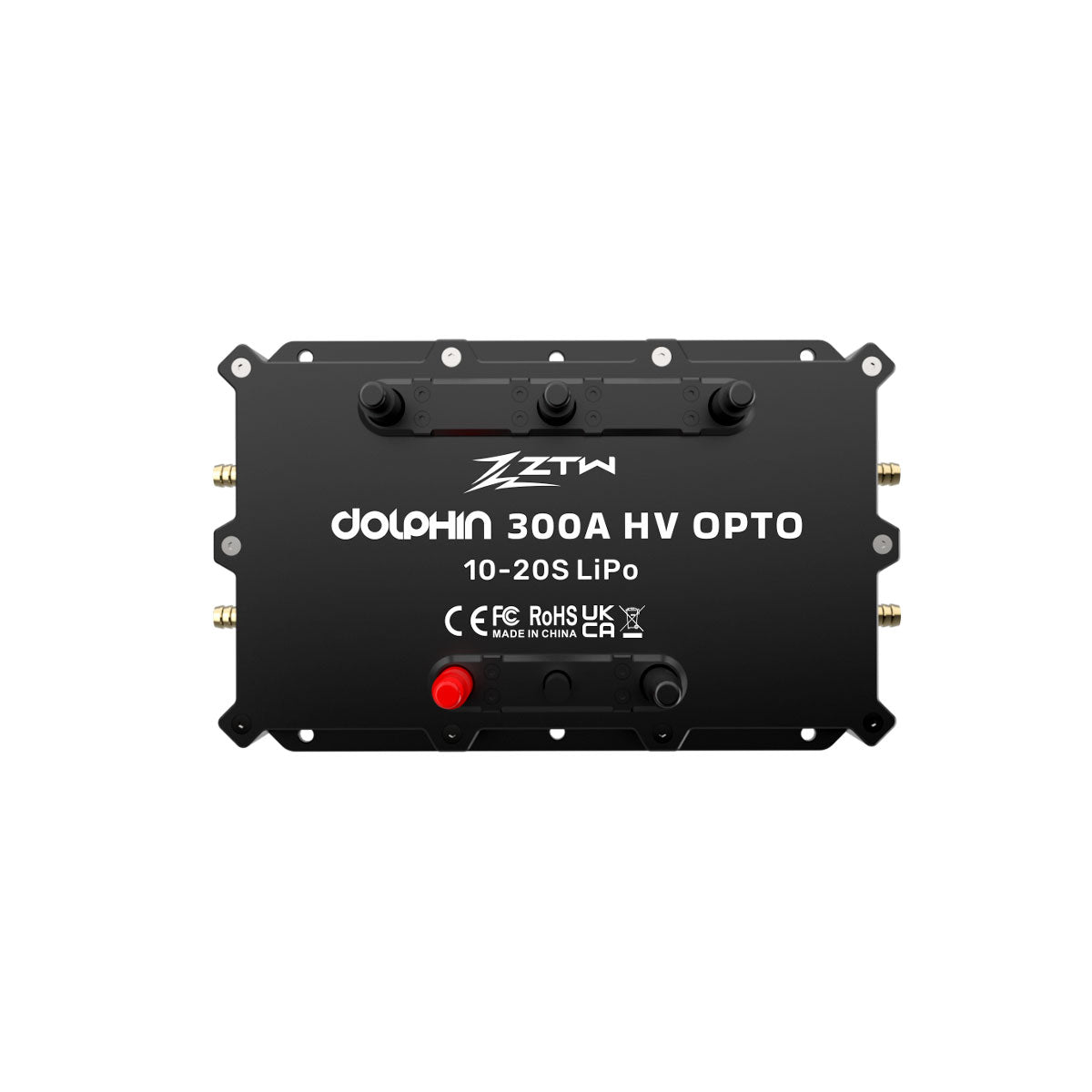

ZTW Dolphin 300A ESC HV 10-20S For Electric Surfboard/E-Foil
We(ZTW) have released a new Dolphin 300A ESC HV 10-20S For Electric Surfboard/E-Foil.
Key Features:
1. High Performance MCU: Enables zero-lag instant start, ultra-fast response, and high efficiency with low noise.
2. Adaptive Throttle Response: Offers nimble control for small boats, stable power for large vessels, easy handling for e-foils, and brings the ultimate water freedom experience.
3. IP67 Fully Waterproof Design: Comes with a metal enclosure, providing complete dustproof protection, resisting seawater corrosion, and withstanding harsh environments.

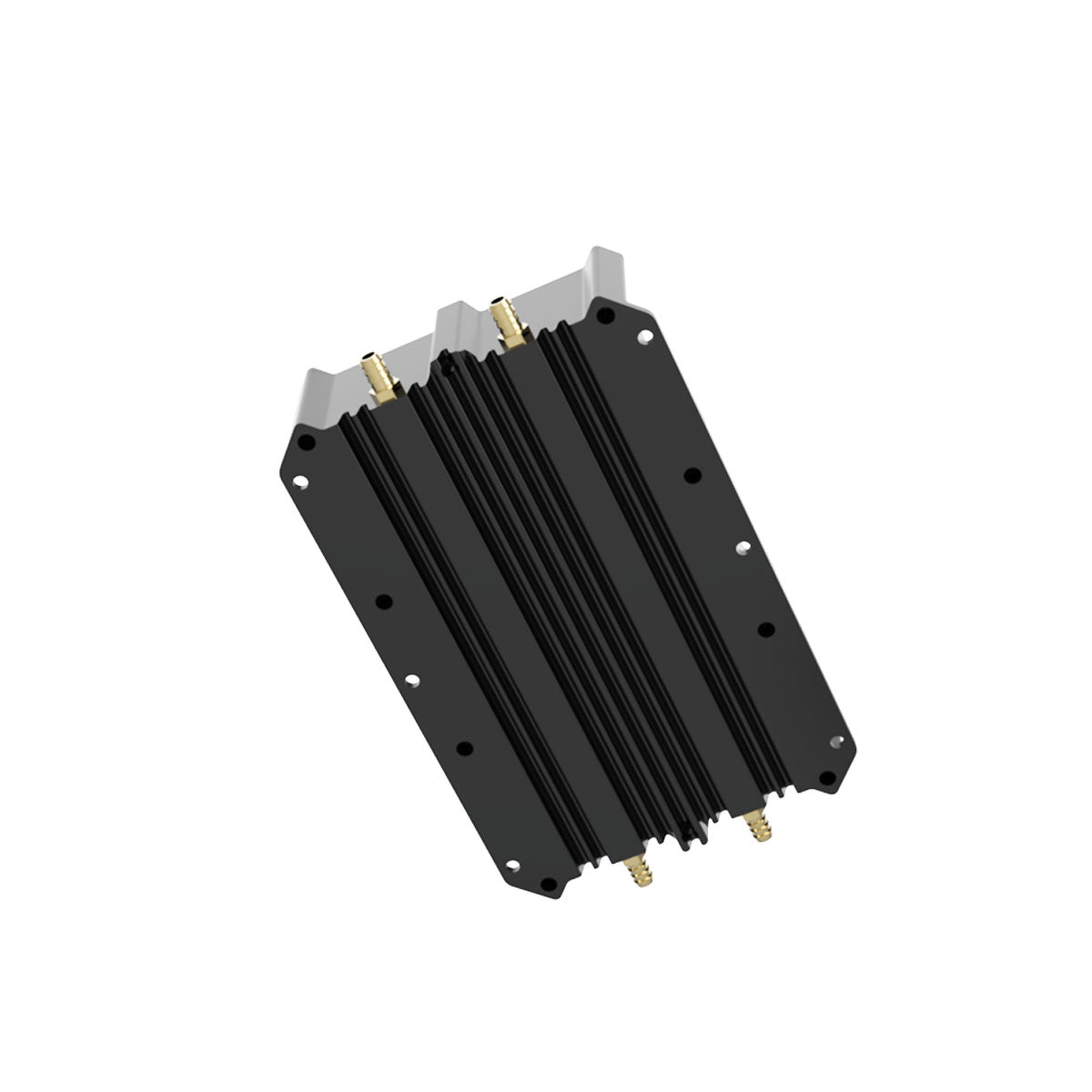

4. Dual Cooling System: Combines an aluminum casing and a water - cooling tube for efficient heat dissipation under sustained high loads.
5. Extreme Power Output: Delivers 300A continuous and 1200A burst current, supports 10S-20S LiPo (42V - 84V), and ensures stable performance under heavy loads, perfect for high-performance e-foils and marine applications.
6. 5V/1A BEC Power Supply: Provides stable output to ensure the safe operation of the control system, enhancing user safety and experience.
7. Comprehensive Intelligent Protection: Power safety like over-voltage, low-voltage, over-current; System safety like overheat, communication fault, motor fault, and emergency protection like throttle signal loss.
8. Compatible with Multiple-range E-foils/Surfboard.
| Model | Dolphin 300A HV 10-20S |
| Continuous Current(A) | 300 Amps |
| Burst Current(A) | 1200 Amps |
| Voltage | 10-20S Lipo (42-84V) |
| Power Wire | 6 Gauge 275mm-Red/275mm-Black |
| Motor Wire | 6 Gauge 275mm-Black |
| BEC Output | 5V-1A |
| Size(not including wires) | 160*110*39.5mm(L*W*H) |
| Weight | 1143g |
