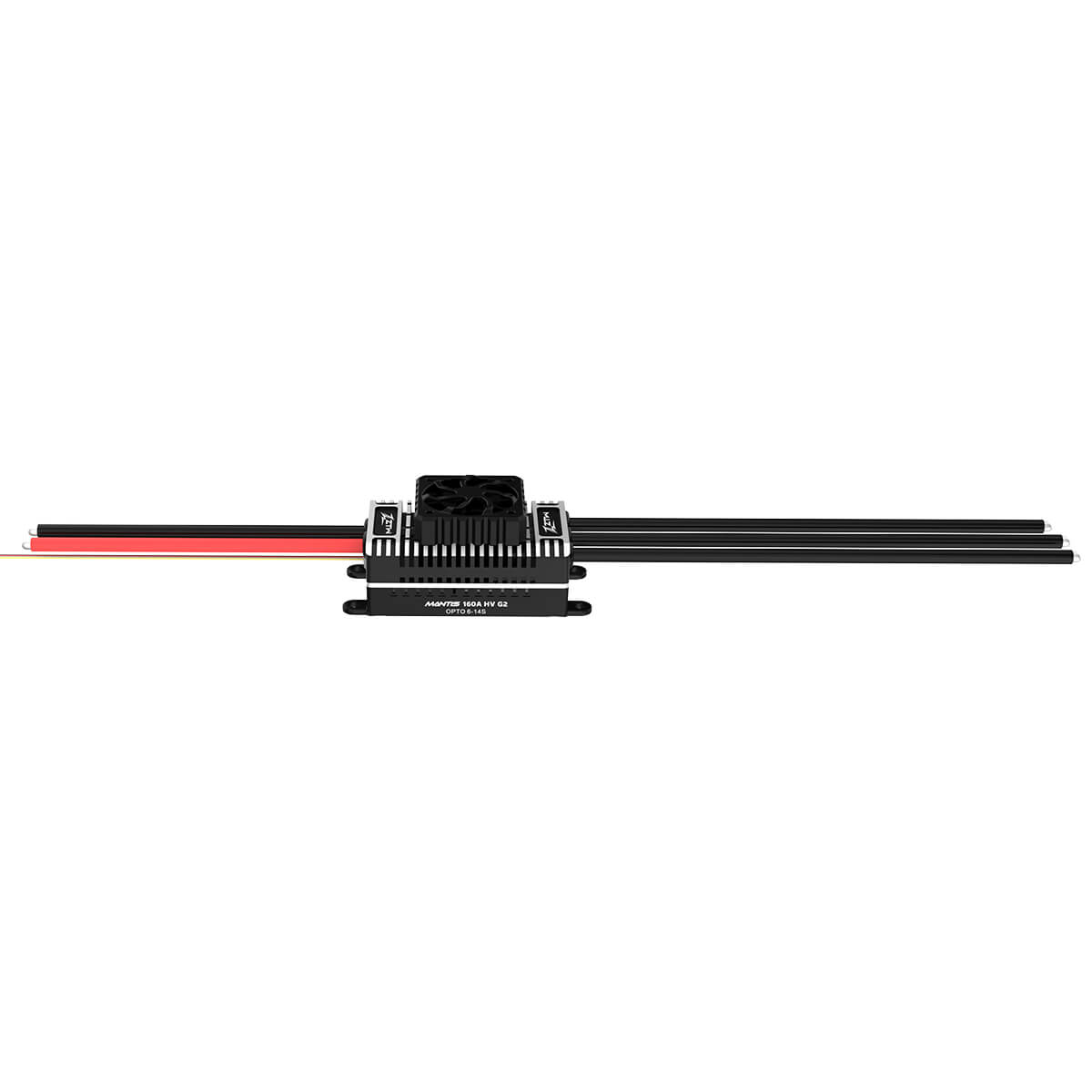

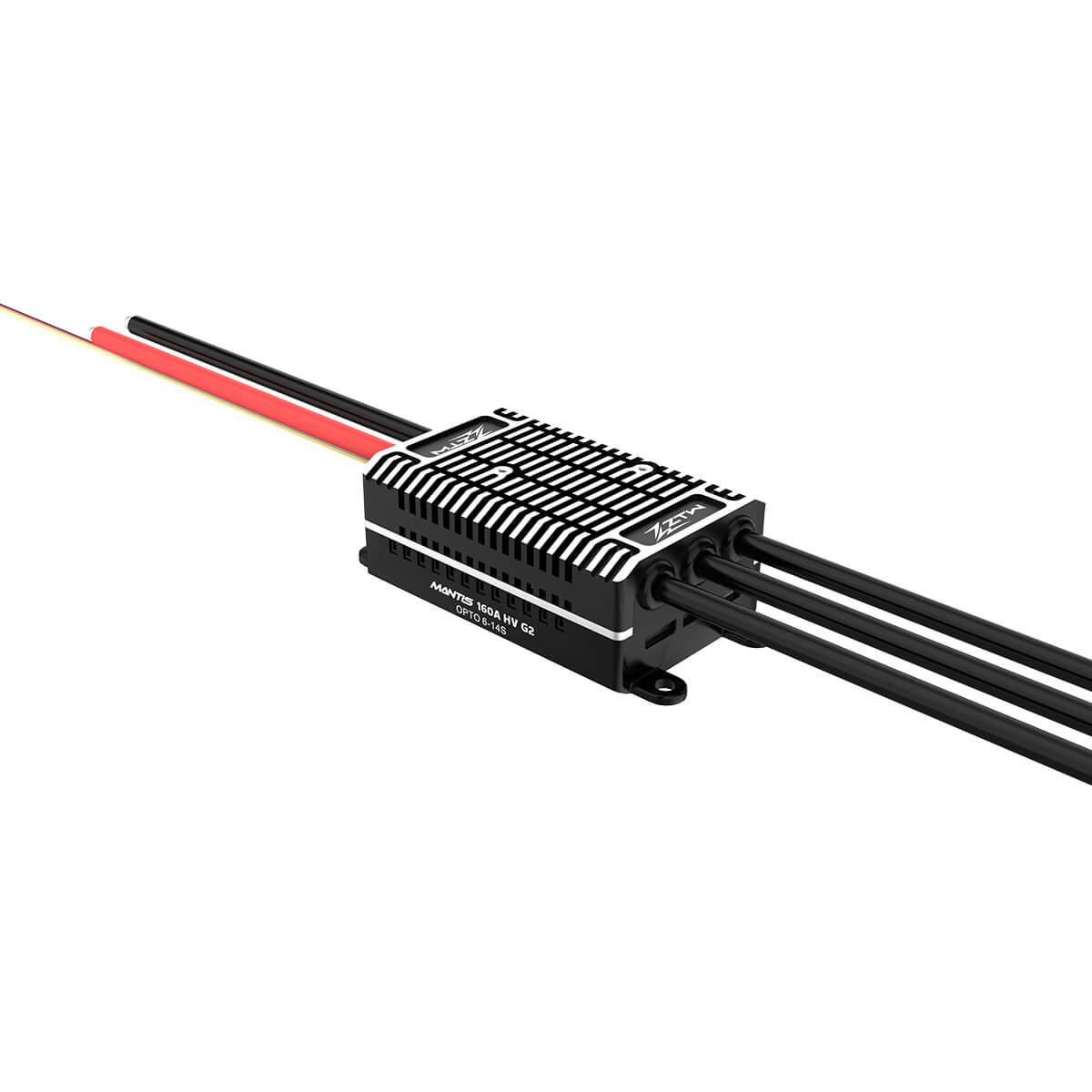

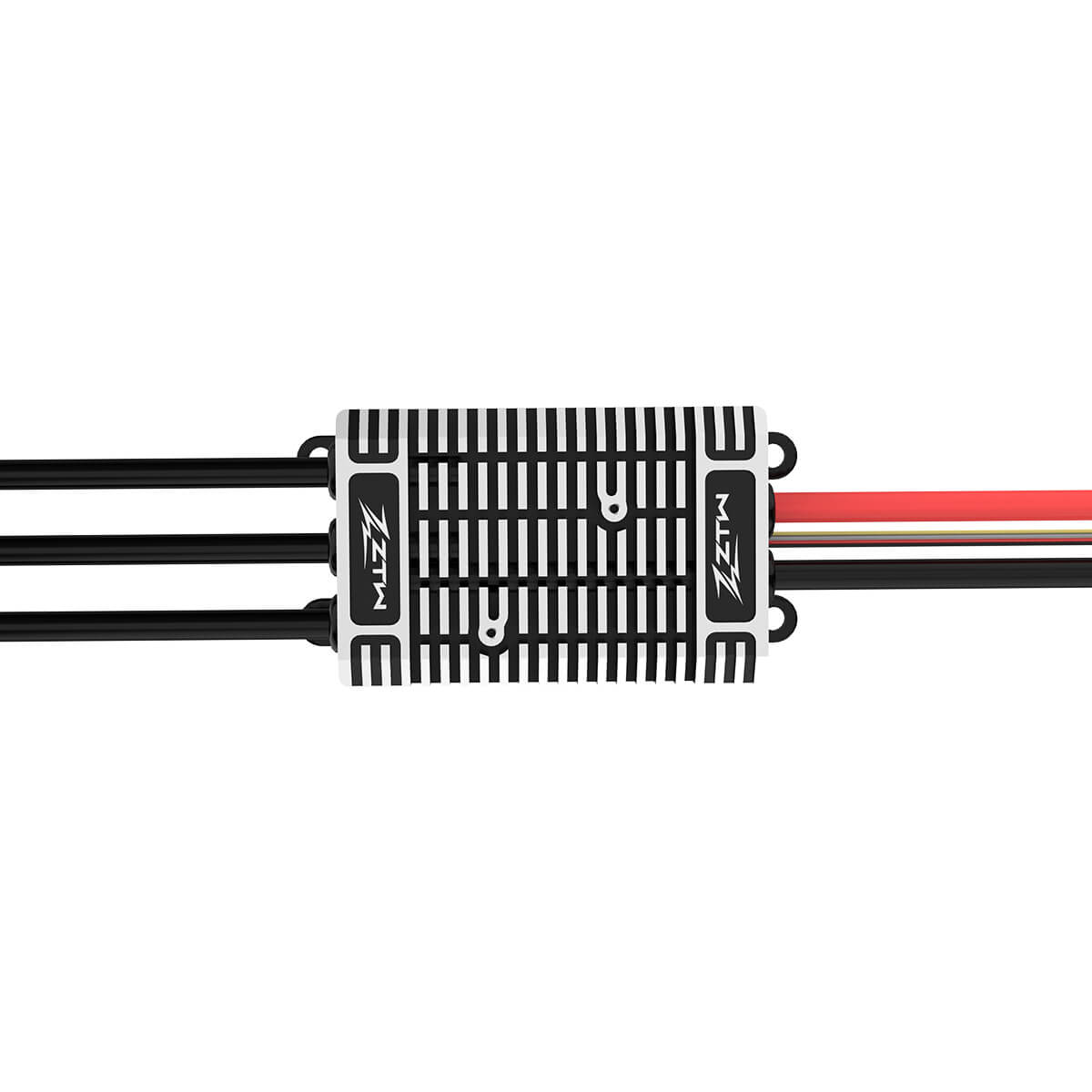

ZTW Mantis G2 160A ESC HV 6-14S OPTO For RC Airplane EDF

Sale price$149.99 Regular price$176.46
Save $26.47

We(ZTW) have released a new 32-bit Mantis G2 160A ESC HV 6-14S OPTO for RC airplane EDF fixed-wing.

Key Features:

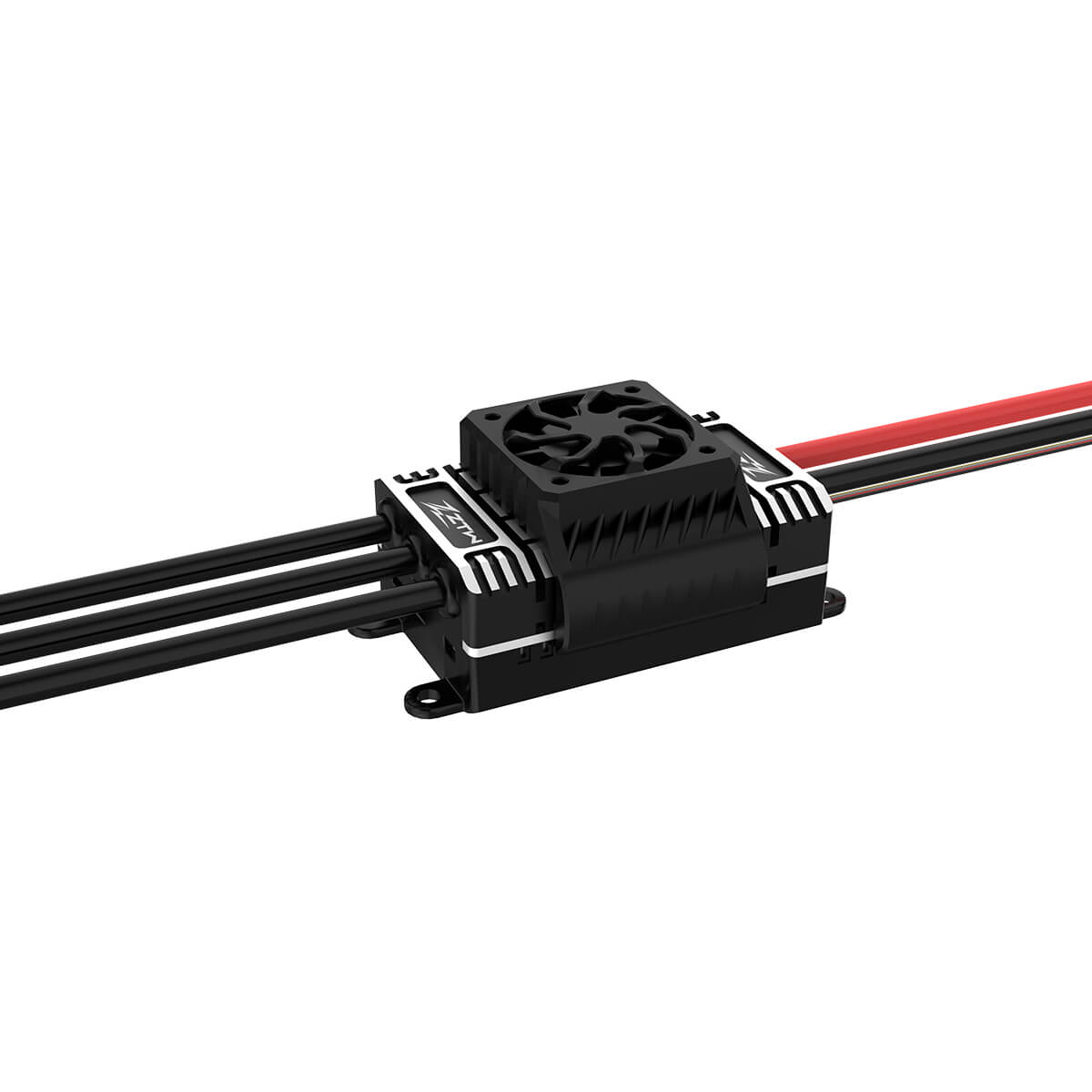

1. The holes on both sides of the ESC and the unique fan guard structure make the ESC better heat dissipation.
2. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
3. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
4. Super smooth start-up and accurate throttle linearity.
5. Higher driving efficiency and more energy-saving.
6. Two modes: normal and soft acceleration. It is compatible with normal fixed-wing and EDF jet airplanes, please ensure to select the “Soft” acceleration when using EDF jet airplanes.
7. Multiple protections: start-up, over-heat, low-voltage cutoff, over-current and signal loss.
8. Support high RPM motors, and compatible with most motors in the market.

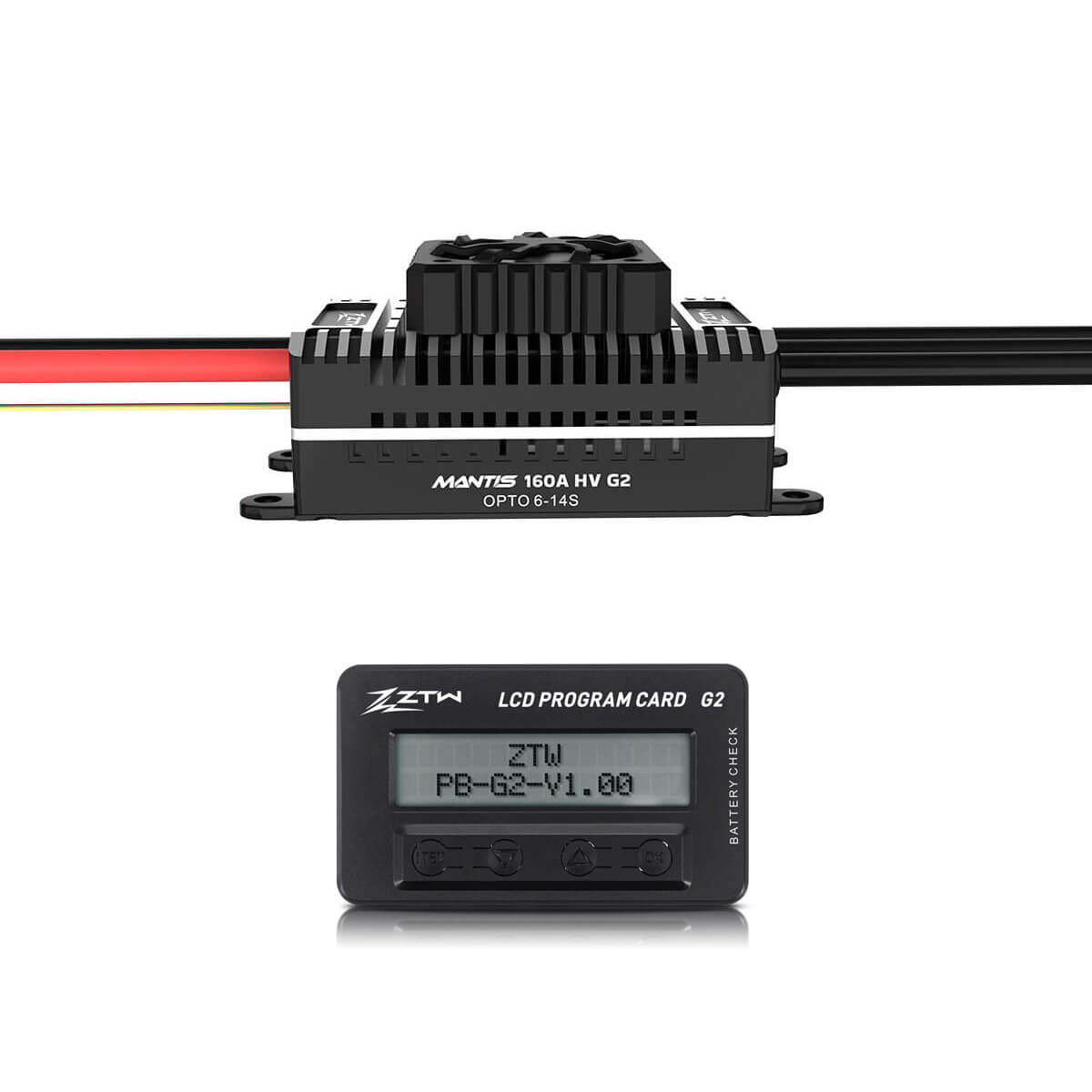

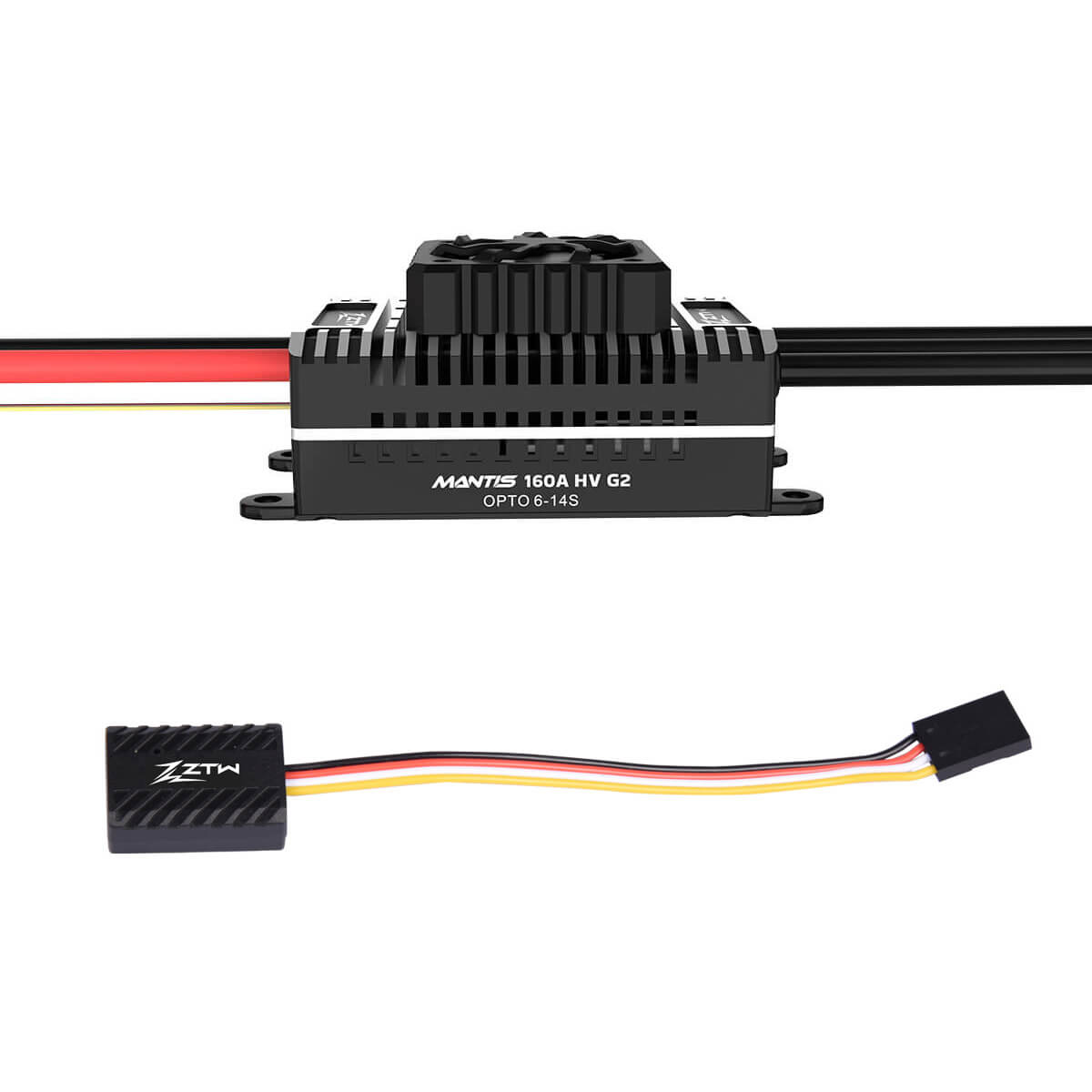

9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card G2 needed).
10. The ESC has data returning feature, it can send data in real-time: current, voltage, temperature, RPM, throttle and ESC status. And you can check the data via ZTW LCD program card G2 or Phone APP in real-time.

Model Mantis G2 160A HV 6-14S OPTO
Continuous Current(A) 160 Amps
Burst Current(A) 180 Amps
Voltage 6-14S  LiPo/LiHV
Power Wire 10 Gauge 160mm-Red/160mm-Black
Motor Wire 10 Gauge 160mm-Black
Size(not including wires) 80*45*45mm(L*W*H)
Weight 200g
Firmware Upgrade Supported
Model: 160A ESC HV 6-14S
Ships From: China
