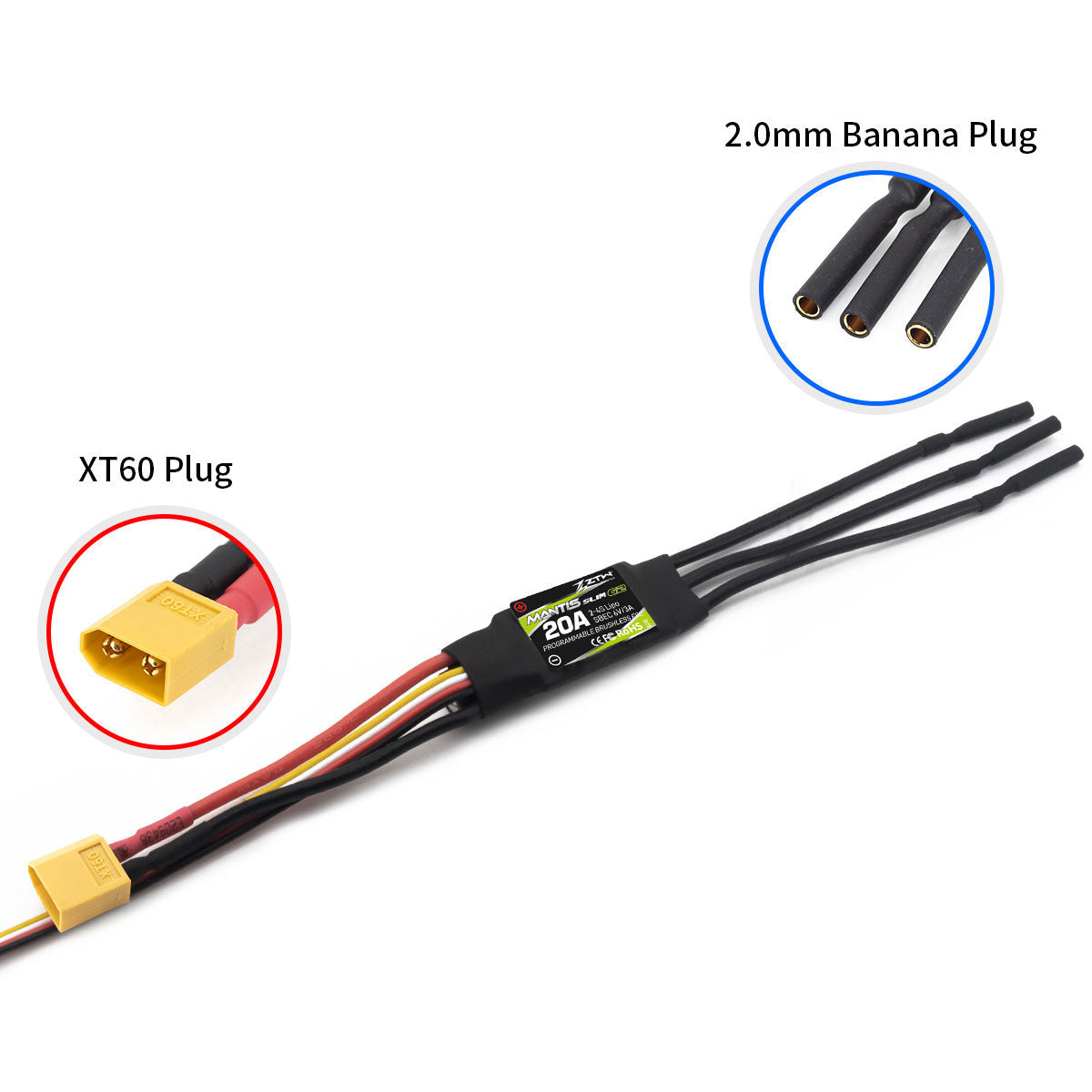

ZTW Mantis Slim G2 20A ESC 2-4S SBEC For RC Airplane F3P 3D Flying
We(ZTW) have released a new 32-bit Mantis Slim G2 20A ESC 2-4S SBEC for RC airplane fixed-wing or indoor F3P 3D Flying.
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Higher driving efficiency and more energy-saving.
5. Mini size, light weight, good for indoor 3D flying.
6. Super strong SBEC output, continuous 6V/3A, peak 5A current.
7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
8. Support high RPM motors, and compatible with most motors in the market.
9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card G2 needed).
| Model | Mantis Slim G2 20A 2-4S SBEC |
| Continuous Current(A) | 20 Amps |
| Burst Current(A) | 30 Amps |
| Voltage | 2-4S LiPo/5-12NC |
| Power Wire | 18 Gauge 70mm-Red/70mm-Black |
| Motor Wire | 18 Gauge 70mm-Black |
| BEC Output | 6V/ 3A |
| Size(not including wires) | 36*36*10mm(L*W*H) |
| Weight | 11g |
| Firmware Upgrade | Not Supported |
